Furnizor:  LEM

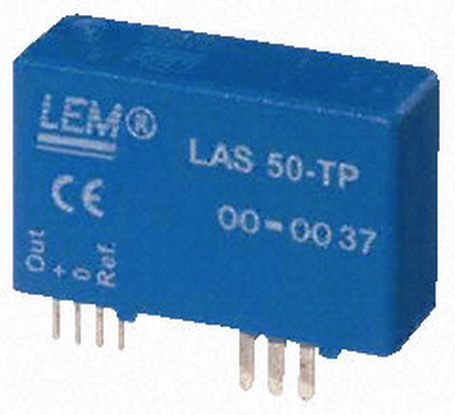

Senzor curent 0-150A LAS 50-TP/SP1 LEM

  CURRENT TRANSDUCER
  Current Measuring Range AC: -150A to 150A
  Current Measuring Range DC:  -150A to 150A
  Supply Voltage Range DC:  4.75V to 5.25V
  Sensor Output1:  Voltage
  Accuracy %:  1%
  Response Time: 500ns
  Accuracy: 1%
  Accuracy %: 0.7%
  Current Consumption: 17mA
  Current Range AC: DC, AC, Pulsed, Mixed
  Current Range DC: DC, AC, Pulsed, Mixed
  External Depth:  14.63mm
  External Length / Height: 21mm
  External Width: 33.9mm
  Flammability Rating: UL 94-V0
  Frequency Max: 100kHz
  Frequency Min: 0Hz
  Operating Temperature Max:85C
  Operating Temperature Min: -40C
  Output Current Max: 50A
  Output Current Min: 0A
  Percentage Accuracy +: 0.5%
  Percentage Accuracy -: 0.5%
  Series: LAS 50-TP/SP1
  Supply Voltage DC Max:5V
  Transducer Function: Electronic Measurement of Current
