Furnizor:LEM  , DHR 100 C420

RoHS :  Da
Descriere

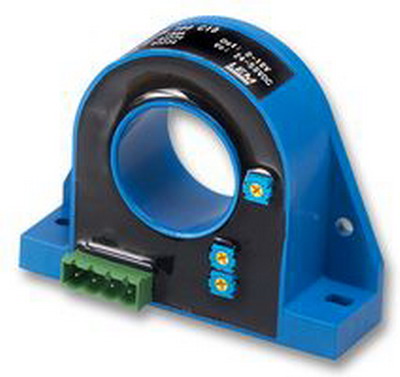

CURRENT TRANSDUCER, 100A, 4-20MA O/P
DC Current Measuring Ranges:100 A
AC Current Measuring Ranges:100 A
Operating Frequency Range:   DC to 6000Hz
DC Supply Voltage Range:       20V to 50V
Sensor Output:Current
Accuracy:1%
Response Time:150ms
SVHC:No SVHC
Current Consumption:30mA
Max Frequency:6kHz
Max Supply Voltage DC:50V dc
Output Type:True RMS
External Depth:25mm
External Length / Height:70mm
External Width:90mm
Fixing Hole Diameter:4.6mm
Flammability Rating:UL94V-0
IP Rating:IP20
Max Conductor Diameter:32mm
Max Current:600A
Max Load Current:30mA
Max Operating Temperature:70C
Min Frequency:20Hz
Min Supply Voltage DC:20V dc
Min Temperature Operating:-40C
Output:4 - 20 mA dc
Percentage Accuracy:1%
Series:DHR-C420
Supply Current:30mA
Transducer Function:AC/DC Current Transducer
Weight:260g
