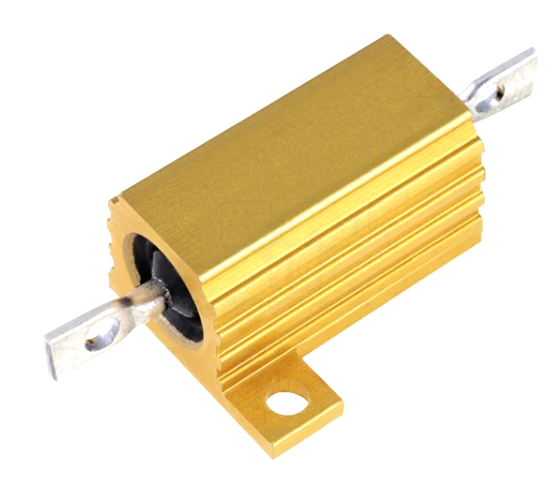

Componente electronice pasiveRezistenteRezistente putere 15W-20WRezistenta 500R, putere, 15W, HS15-500RJ, ARCOL
Componente electronice pasiveRezistenteRezistente putere 15W-20WRezistenta 500R, putere, 15W, HS15-500RJ, ARCOL
Manufacturer ARCOL
Type of resistor wire-wound
Kind of resistor with heatsink
Mounting screw
Resistance 500Ω
Power 15W
Tolerance ±5%
Max. operating voltage 265V
Body dimensions 19.9x21x11mm
Resistor features needs additional heatsink
Temperature coefficient 100ppm/°C
Leads for soldering
Mounting holes pitch 14.3x15.9mm
Power without heatsink 7W
