Relee electromagnetice

Releu auto, 12VDC, 30A, SPDT, 5 pini, micro releu, V23086-C1001-A403, TE CONNECTIVITY

Livrare

Ofertă specială de transport pentru persoane fizice*.

*)Pentru a afla condiţiile de livrare gratuită apăsaţi aici.

Mareste

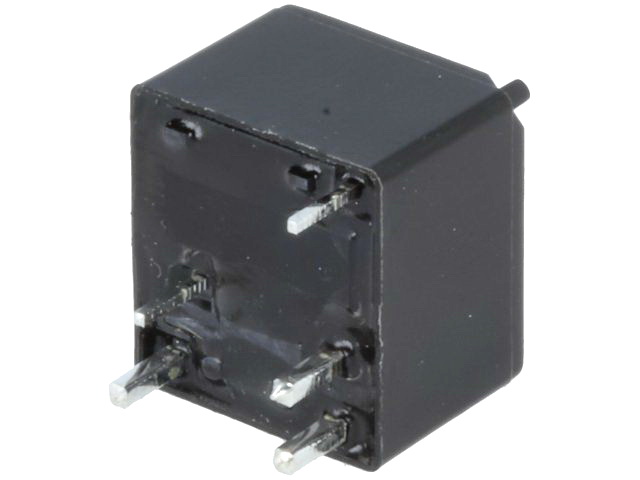

Releu auto, 12VDC, 30A, SPDT, 5 pini, micro releu, V23086-C1001-A403, TE CONNECTIVITY

Denumire Produs: V23086-C1001-A403, TE CONNECTIVITY

COD: 47693

Preț: 27,12 RON

(Prețul include TVA)

In stoc

Adaugati la lista de favorite

Cantitate:

Descriere
Data Sheet
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

Furnizor: TYCO ELECTRONICS

V23086C1001A403

RoHS :
Descriere
RELAY, PCB, , MICRO K, 30A
Relay Type:General Purpose
Coil Voltage VDC Nom:12V
Contact Current Max:40A
Coil Resistance:254ohm
Contact Configuration:SPCO
Coil Type:DC Coil, Monostable
Nom Operating Power:550mW
Relay Mounting:PC Board
External Length / Height:9.9mm
External Width:12mm
External Depth:12.9mm
Contact Current AC Max:20A
Mounting Type:PCB
No. of Poles:1
Operating Temperature Max:105C
Series:V23086
Temperature Operating Min:-40C
Contact Current Max:25A
Contact Material:AgSnO

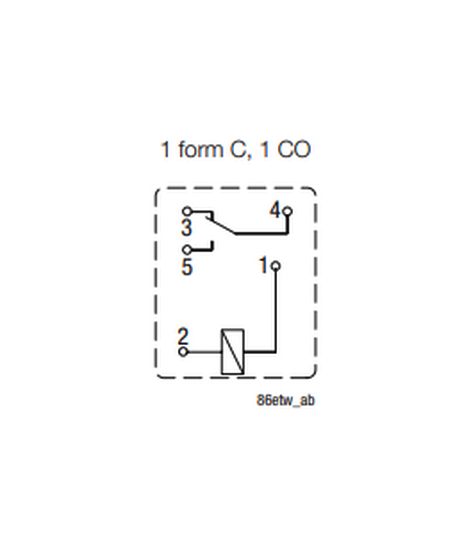

Contact Style:Form C
DC Coil Power:0.55W
IP / NEMA Rating:IP 67
Must Actuate Voltage:6.9V
Operating Frequency Max:50Hz
Operating Time:3ms
Power Consumption:0.55W
Release Time:1.5ms
Switch Current Max:40A
Switched Current Max:30A
Weight:4g

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
