Furnizor:  TYCO ELECTRONICS

V23057-B0006-A201

RoHS :  Da
Descriere
RELAY, PCB, 24VDC, V
Relay Type:General Purpose
Coil Voltage VDC Nom:24V
Contact Current Max:8A
Contact Voltage AC Nom:240V
Coil Resistance:1.2kohm
Coil Type:DC Coil
Nom Operating Power:480mW

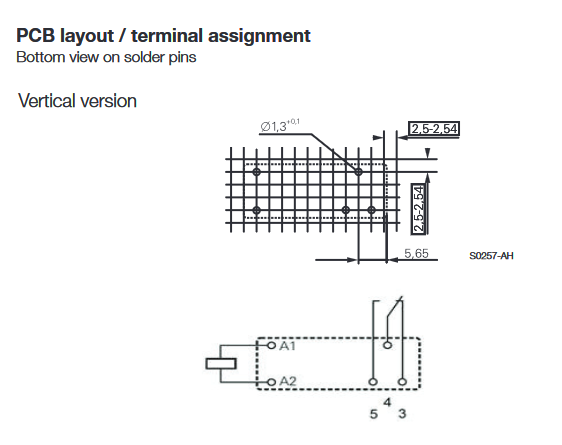

Relay Mounting:PC Board
External Width:28mm
External Depth:10.5mm
Contact Configuration:SPCO
Contact Current AC Max:8A
Contact Voltage AC Max:250V
External Length / Height:25.1mm
Mounting Type:PCB
No. of Poles:1
Operating Temperature Max:70C
Operating Temperature Min:-40C
Series:V23057
Approval Bodies:VDE, UL, CSA
Coil Operating Lower Percent Limit:65%
Coil Operating Upper Percent Limit:175%
Contact Material:Silver Nickel
DC Coil Power:500mW
Operating Time:7ms
Release Time:6ms
Switch Current Max:5A
