Furnizor: TYCO ELECTRONICS

T9CP1A54-240

RoHS :  Da
Descriere
RELAY, SPNO, 240VAC
Relay Type:General Purpose
Nom Coil Voltage AC:240V
Contact Current Max:30A
Contact Voltage AC Nom:250V
Contact Voltage DC Nom:28V
Coil Resistance:12kohm
Contact Configuration:SPNO
Coil Type:AC Coil
Coil Current:6.67mA
Nom Operating Power:1.6VA
Relay Mounting:Panel
External Length / Height:27.9mm
External Width:32.3mm
External Depth:27.4mm
Max Contact Current AC:20A
Max Operating Temperature:70C
Min Temperature Operating:-40C
Mounting Type:Panel
No. of Poles:1
Series:T9C
Type:Dust protected
AC Coil Power:1.6VA
Approval Category:UL Recognised
Case Material:Plastic
Contact Material:AgSnInO

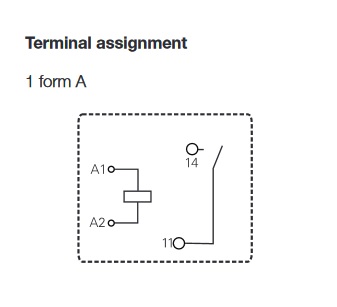

Contact Style:1 Form A
Dielectric Voltage Coil to Contact:2500V
Dielectric Voltage Contact to Contact:1500V
Fixing Centres:43.61mm
Insulation Resistance:1000Mohm
Max Switch Voltage:400V AC
Terminal Type:Quick Connect
Voltage Rating AC:250V AC
