Pagină de start>Relee și contactoare, socluri>Relee electromagnetice>Releu 24VAC, 10A, DPDT, MY2IN-24ACS, OMRON

Mareste

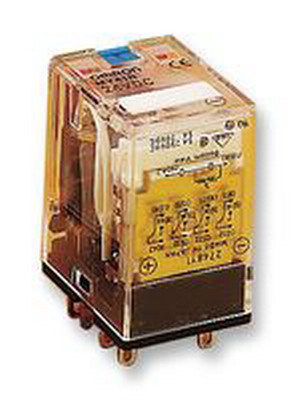

Releu 24VAC, 10A, DPDT, MY2IN-24ACS, OMRON

Denumire Produs: MY2IN-24ACS

COD: 52319

Preț orientativ: 112,80 RON

Furnizor: OMRON INDUSTRIAL AUTOMATION

  • RELAY, DPCO, 24VAC
  • Relay Type: General Purpose
  • Coil Voltage VAC Nom: 24V
  • Contact Current Max: 10A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 30V
  • Coil Resistance: 180ohm
  • Contact Configuration: DPCO
  • Coil Type: AC
  • Coil Current: 53.8mA
  • Nom Operating Power: 1.2VA
  • Relay Mounting: Plug-In
  • External Height: 28mm
  • External Width: 21.5mm
  • External Depth: 36mm
  • AC Coil Power: 1.2VA
  • Approval Bodies: UL, CSA, VDE
  • Coil Operating Lower Percent Limit: 80%
  • Coil Operating Upper Percent Limit: 110%
  • Contact Configuration: DPCO
  • Contact Current AC Max: 10A
  • Contact Current DC Max: 10A
  • Contact Material: Silver
  • Contact Voltage AC Max: 250V
  • Contact Voltage DC Max: 30V
  • DC Coil Power: 0.9W
  • External Length / Height: 28mm
  • Mounting Type: Plug-In
  • No. of Poles: 2
  • Operating Temperature Max: 70C
  • Operating Temperature Min: -55C
  • Operating Time: 20ms
  • Release Time: 20ms
  • Series: MY
  • Switch Current Max: 5A
  • Switching Current Max: 5A
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
