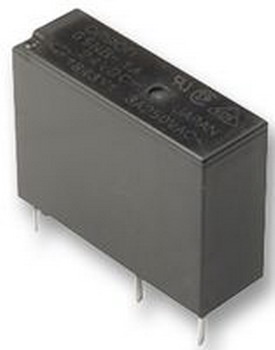

Relee și contactoare, socluriRelee electromagneticeReleu 12VDC, 5A, SPST, G5NB-1A-E-12DC
Descriere
RELAY, PCB, SPNO, 12VDC
Relay Type:Power
Coil Voltage VDC Nom:12V
Contact Current Max:5A
Contact Voltage AC Nom:250V
Contact Voltage DC Nom:30V
Coil Resistance:720ohm
Contact Configuration:SPST
Coil Type:DC Coil, Sensitive
Coil Current:16.7mA
Nom Operating Power:200mW
Relay Mounting:PC Board
External Length / Height:15.3mm
External Width:20.5mm
External Depth:7.2mm
Contact Current AC Max:5A
Contact Current DC Max:3A
Contact Voltage AC Max:250V
Contact Voltage DC Max:30V
Mounting Type:PCB
No. of Poles:1
Operating Temperature Max:85C
Series:G5NB
Temperature Operating Min:-40C
Approval Bodies:CSA, VDE
Approval Category:UL Recognised
Contact Material:AgNi
Contact Resistance:100mohm
DC Coil Power:200mW
Dielectric Voltage Coil to Contact:4000VAC
Dielectric Voltage Contact to Contact:750VAC
Insulation Resistance:1000Mohm
Operating Time:10ms
Release Time:10ms
Switched Current Max:5A
Switching Power Max:90W
