RELPOL R40N-3021-85-1048
Relay: electromagnetic; SPST-NO; Ucoil:48VDC; 40A; Series: R40N
Manufacturer RELPOL
Relay type electromagnetic

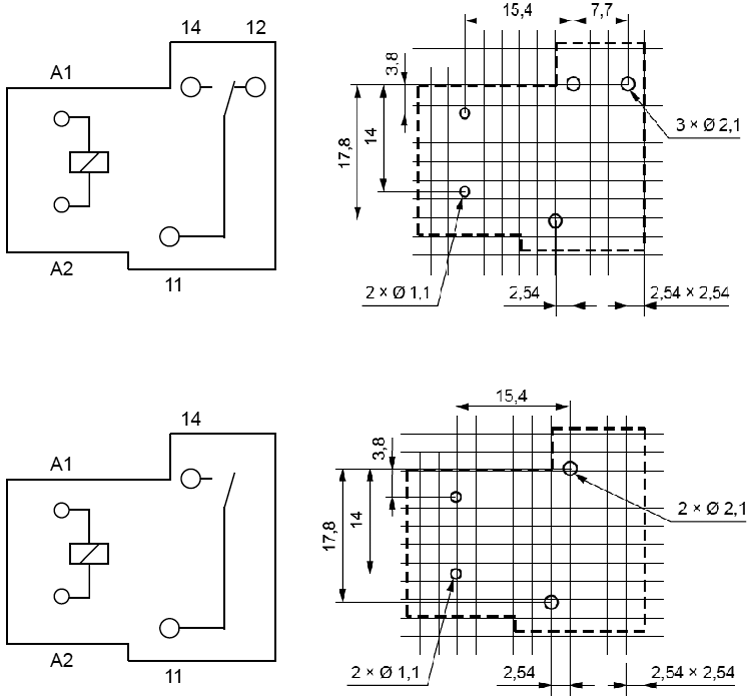

Contacts configuration SPST-NO
Rated coil voltage 48V DC
Contact current max. 40A
Relay series R40N
Relay variant power
Operating temperature -55...100°C
Mounting PCB
Coil resistance 2.56kΩ
Switched voltage max 300V AC, max 110V DC
Coil power consumption 0.9W
DC contacts rating
(at resistance load) 40 A / 30 VDC
Contact resistance 30mΩ

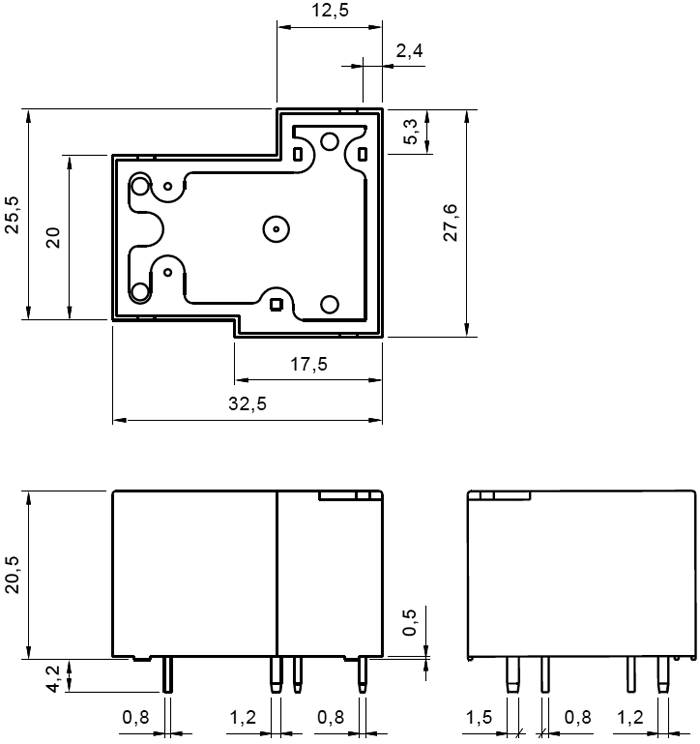

Body dimensions 32.5 x 27.6 x 20.5mm
AC contacts rating
(at resistance load) 40 A / 240 VAC
Operate time 15ms
Release time 10ms
Mechanical durability 100000000cycles
Contact material AgSnO2
Electrical life 1000000cycles
IP rating IP64
