Relee și contactoare, socluriRelee autoReleu auto 24VDC, micro relay, SPDT, 30A, V23074-A1002-A403
Relee și contactoare, socluriRelee autoReleu auto 24VDC, micro relay, SPDT, 30A, V23074-A1002-A403

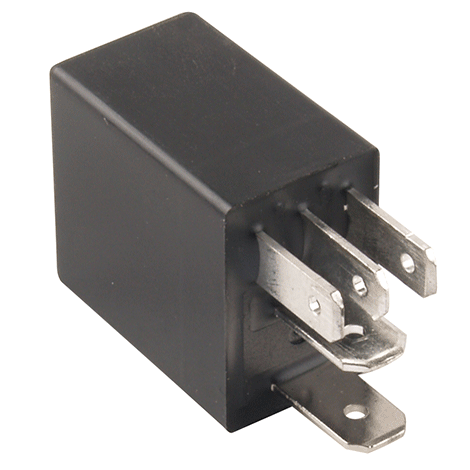

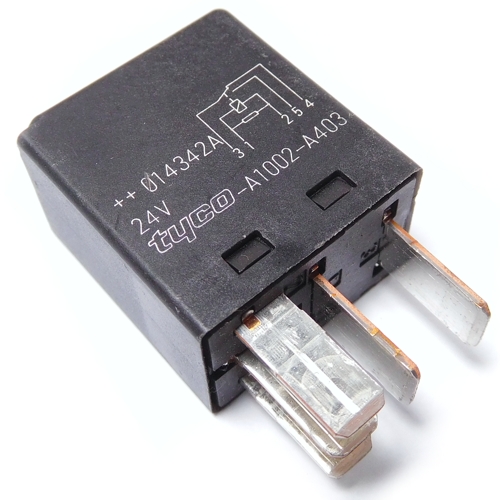

TE CONNECTIVITY V23074A1002A403 Automotive Relay, Micro A Series, SPDT, 24 VDC, 30 A, Through Hole, Solder
The Micro Relay A series from TE Connectivity are plug-in automotive relays.
These Micro ISO relays are used in ABS control, blower fans, cooling fan, door control, door lock, fuel pump, heated front screen, immobilizer, interior lights, seat control, seatbelt pretensioner, sun roof, trunk lock, valves, window lifter and wiper control.
Product Range: Micro A Series
Contact Configuration: SPDT
Coil Voltage: 24VDC
Contact Current: 30A
Relay Mounting: Through Hole
Relay Terminals: Solder
Contact Voltage DC Nom: 24V
Coil Resistance: 430ohm
Contact Material: Silver
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
