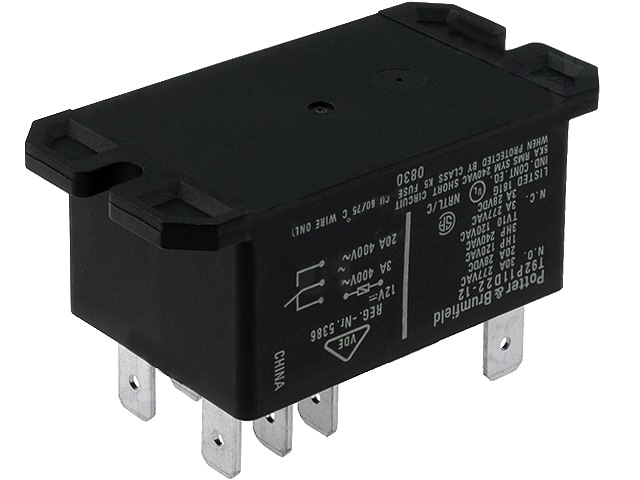

T92P11D22-12 Releu DPDT 12VDC 30A T92 2 C/O conectori rapizi
Producator: TYCO
Simbol original: 5-1393211-3
Tip releu: uz general
Tensiune VDC nom bobina: 12V
Curent max contact: 40A
Tensiune AC nom contact: 600V
Tensiune DC nom contact: 28V
Rezistenta bobina: 86ohm
Configuratie contact: DPDT
Material pin AgCdO
Rezistenta mecanica: 5000000 cicluri

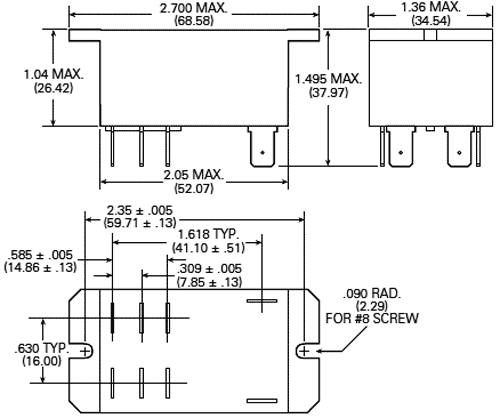

Dimensiuni exterioare: 65,85 x 34,54 x 26,42
