Relee și contactoare, socluriRelee electromagneticeReleu 48VDC, 48V, 16A, SPDT, RM85-2011-35-1048
Relee și contactoare, socluriRelee electromagneticeReleu 48VDC, 48V, 16A, SPDT, RM85-2011-35-1048

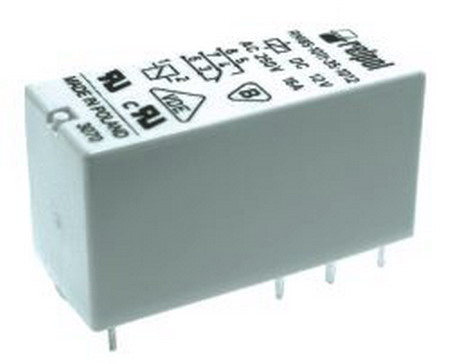

RM85-P-48V Releu SPDT, 16A, DC48V montare PCB Producator: RELPOL Simbol original: RM85-2011-35-1048
Contact rated current : 16 A/250 V AC/24 V DC
Max. contact rated voltage : 400 V AC/300 V DC
Dielectric strength coil/contacts : 5000 V AC
Operate time : 7 ms
Release time : 3 ms
Coil power consumption : 0,4...0,48 W ( DC),
0,75 VA ( AC)
Temperature range : -40C to +85C
Soldering temperature : 270C/max 5 s
Protection degree : IP67
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
