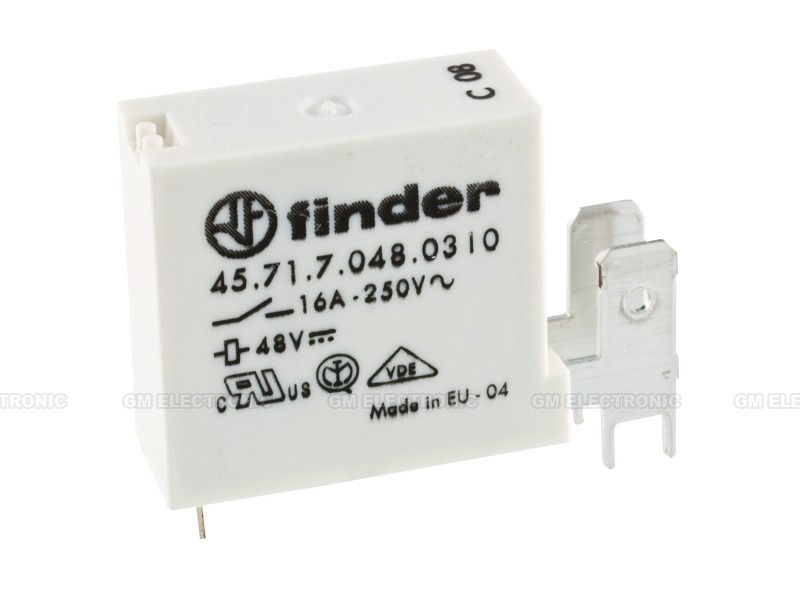

Relee și contactoare, socluriRelee electromagneticeReleu 48VDC, 16A, SPTS-NO, 250VAC, 45.71.7.048.0310, FINDER
Relee și contactoare, socluriRelee electromagneticeReleu 48VDC, 16A, SPTS-NO, 250VAC, 45.71.7.048.0310, FINDER
Specificații Tip releu electromagnetic
RoHS Da
Contact Form SPST-NO
Max. Switching Current 30 A
Coil Voltage 48VDC
Type Power
Coil Resistance 6400 Ohm
Coil Power 360 mW
Max. Switching Power 4000VA
Max. Switching Voltage 400VAC
Dielectric Strength (between coil and contacts) 4000VAC
Operate/Release time 10ms/2ms

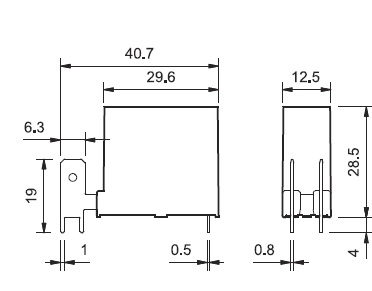

Dimensions 40,7x12,5x28,5mm
Contact Material AgCdO
Description Faston
