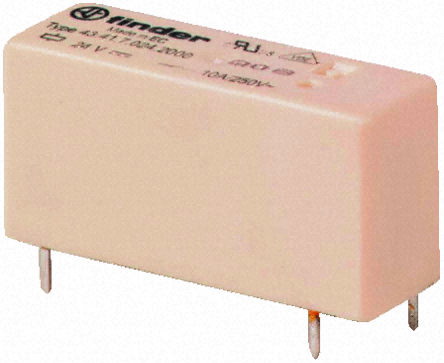

Releu 24VDC, 10A, SPCO, 43.41.7.024.2000, FINDER

Denumire Produs: 43.41.7.024.2000, FINDER

COD: 59546

Preț orientativ: 79,25 RON

Descriere
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

Furnizor: FINDER

43.41.7.024.2000

RoHS : Da
Descriere
RELAY, PCB, SPCO, 12VDC
Relay Type:PCB
Coil Voltage VDC Nom:24V
Contact Current Max:15A
Contact Voltage AC Nom:250V
Coil Resistance:580ohm
Contact Configuration:SPCO
Coil Type:DC, Sensitive
Coil Current:20.7mA
Nom Operating Power:250mW
Relay Mounting:PCB

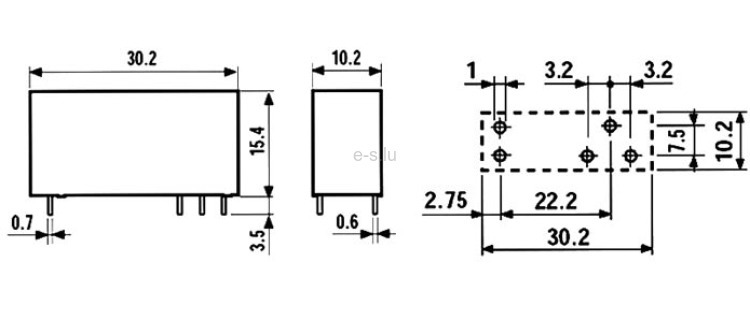

External Height:15.4mm
External Width:30.2mm
External Depth:10.2mm
Contact Configuration:SPCO
Contact Current DC Max:10A
Contact Voltage AC Max:250V
External Length / Height:15.4mm
Mounting Type:PCB
No. of Poles:1
Series:43
Contact Current Rating:10A
Contact Material:AgNi
DC Coil Power:0.25W

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
