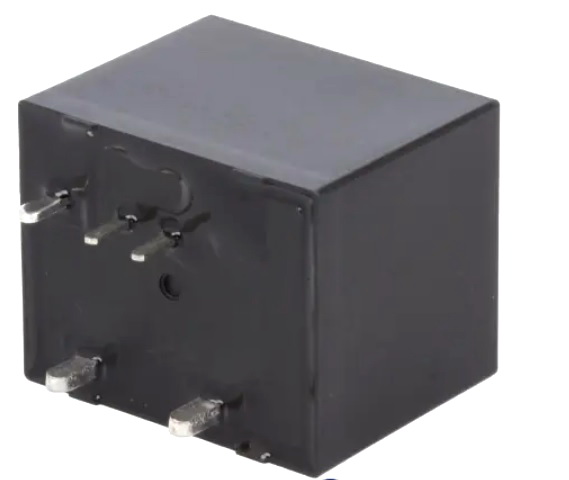

Relee și contactoare, socluriRelee electromagneticeReleu 24VDC, SPST-NO, 60A, HFKP/024-1H4T, HONGFA
Relee și contactoare, socluriRelee electromagneticeReleu 24VDC, SPST-NO, 60A, HFKP/024-1H4T, HONGFA
Manufacturer HONGFA RELAY
Type of relay electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 24V DC
Contact current max. 60A
DC contacts rating @R (at resistive load) 45A / 12V DC
Relay variant automotive
Coil voltage min. 13.9V DC
Coil voltage max. 28.6V DC
Coil resistance 362Ω
Contact material AgSnO2
Operating temperature -40...125°C

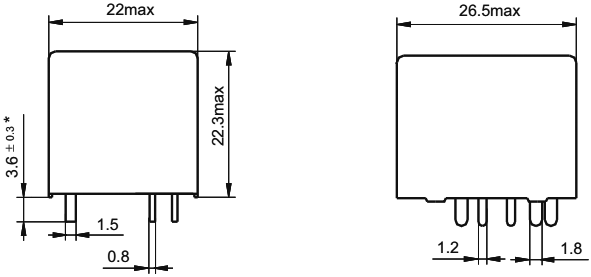

Body dimensions 22x26.5x22.3mm
Mounting PCB
Coil power consumption 1.6W
Switched voltage max. 75V DC
