Pagină de start>Relee și contactoare, socluri>Relee electromagnetice>Releu 12VDC, auto, 20A, SPDT, CP1-12V, PANASONIC

Mareste

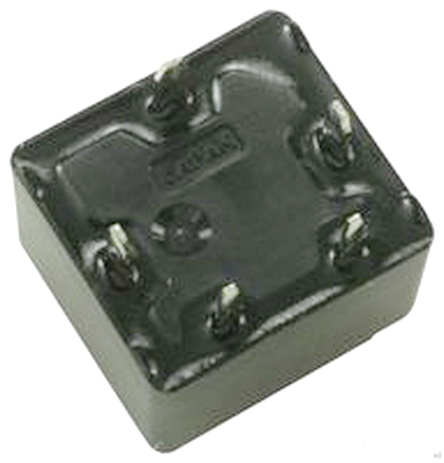

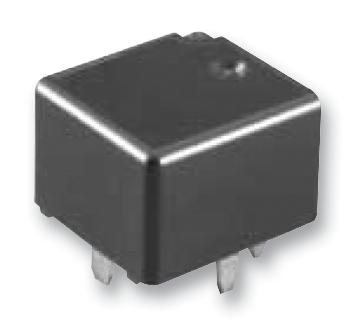

Releu 12VDC, auto, 20A, SPDT, CP1-12V, PANASONIC

Denumire Produs: CP1-12V, PANASONIC

COD: 68565

Preț orientativ: 70,06 RON

PANASONIC ELECTRIC WORKS,  CP1-12V,  RELAY, AUTOMOTIVE, SPDT, 14VDC, 20A

    Approvals & Standards: -
    Coil Resistance: 225ohm
    Coil Voltage: 12VDC
    Contact Configuration: SPDT
    Contact Current: 20A
    Contact Material: Silver Alloy
    Contact Voltage DC Nom: 14V
    Product Range: CP Series
    Relay Mounting: Through Hole
    Relay Terminals: Solder


The CP1-12V is a compact PCB Relay. Relay has sealed construction, suitable for harsh environments and arrangement of coil and contact terminals designed to withstand large capacity which ensures leeway and facilitates PC board design. Relay provides low profile space saving advantages while offering high continuous current of 40A.

    Compact Flat Type Relay
    SPDT Contact Configuration
    High Capacity Provides Low Profile Space Saving Advantages
    Simple Footprint Pattern Enables Ease of PC Board Layout
    Sealed Construction
    Surface Mount Terminal

Aplicaţii : Automotive




ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
