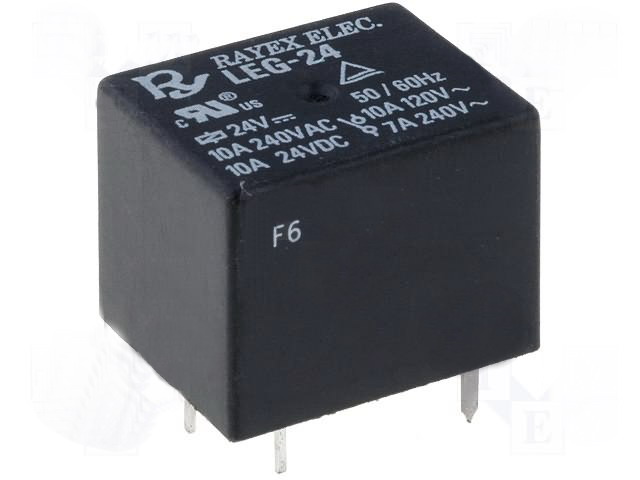

LEG-24 Releu:electromagnetic; Config.pini:SPDT; 24V DC; Montare:PCB RoHS
Producator: RAYEX ELECTRONIC Simbol original: LEG-24
Produs similar pentru: T7NS5D4-24
Producator: RAYEX ELECTRONIC

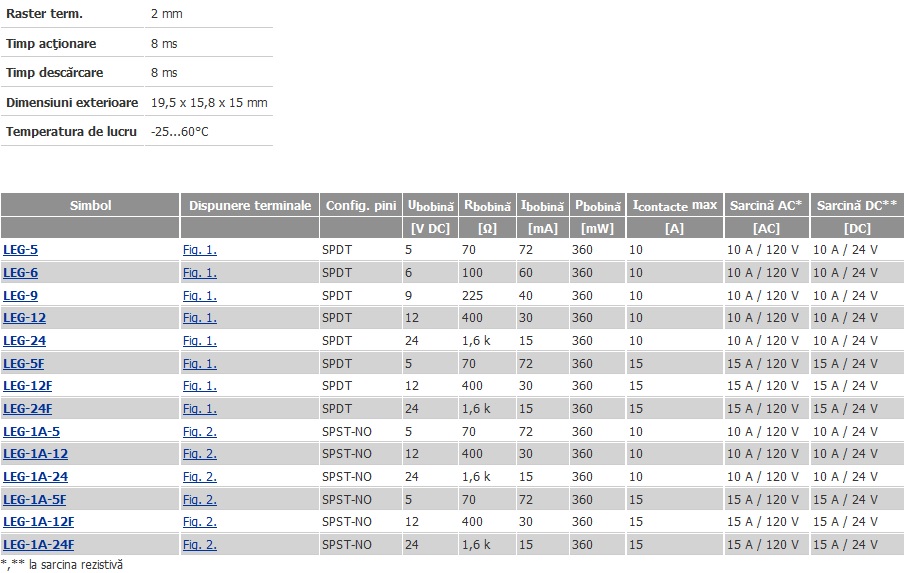

Symbol Coil voltage Coil resistance Coil current Contact rating
[V DC] [Ω] [mA] [A]
LEG-5 5 70 72 10
LEG-5F 5 70 72 15
LEG-12 12 400 30 10
LEG-12F 12 400 30 15
LEG-24 24 1600 15 10
LEG-24F 24 1600 15 15

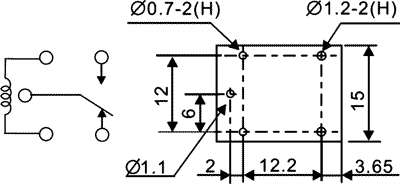

Fitted with one SPDT contact.
Contact material : AgCdO
Contact rating : 10 A / 240 VAC / 24 VDC (LEG-x)
: 15 A / 120 VAC / 24 VDC (LEG-xF)
Operate/release time : 8 / 8 ms
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
