Releu 24VDC, DPDT, 5A, DC24V, JW2SN-DC24V, PANASONIC

Denumire Produs: JW2SN-DC24V, PANASONIC

COD: 77008

Preț orientativ: 42,41 RON

Descriere

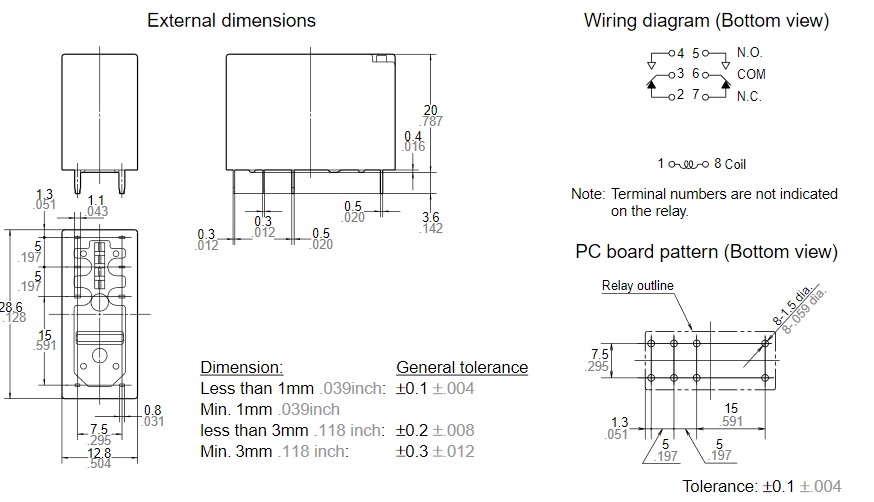

Data Sheet
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

Furnizor: PANASONIC EW
JW2SN-DC24V

RoHS : Da
Descriere
RELAY, PCB, DPDT, 24VDC
Relay Type:Power
Coil Voltage VDC Nom:24V
Contact Current Max:5A
Contact Voltage AC Nom:250V
Contact Voltage DC Nom:30V
Coil Resistance:270ohm
Contact Configuration:DPDT
Coil Type:DC
Coil Current:44mA
Nom Operating Power:530mW
Relay Mounting:PCB
External Height:20mm
External Width:28.6mm
External Depth:12.8mm
Contact Configuration:DPDT
Contact Current AC Max:5A
Contact Current DC Max:5A
Contact Voltage AC Max:250V
Contact Voltage DC Max:30V
External Length / Height:20mm
Mounting Type:PCB
No. of Poles:2
Series:JW

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
