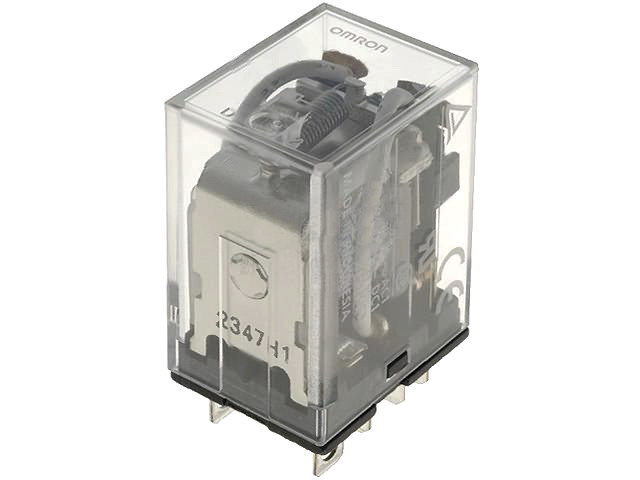

LY2-24AC Releu: industrial; Config.pini: DPDT; Ubobina:24V AC; 10A; 1100VA
Simbol original:LY2 24VAC
Producator:OMRON
Grupa:Relee electromagnetice industriale

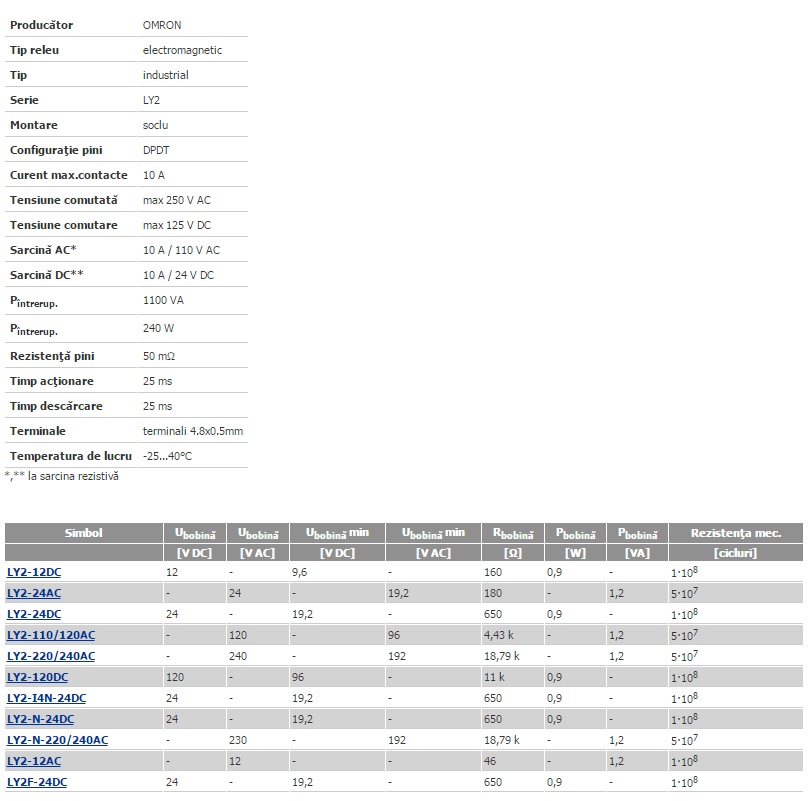

Specificatii tehnice
Tip releu : industrial
Configuratie pini : DPDT
Tensiune nominala bobina : 24V AC
Tensiune min. bobina : 19.2V AC
Curent comutat : 10A
Montare : soclu
Tensiune comutata : max 250V AC, max 125V DC

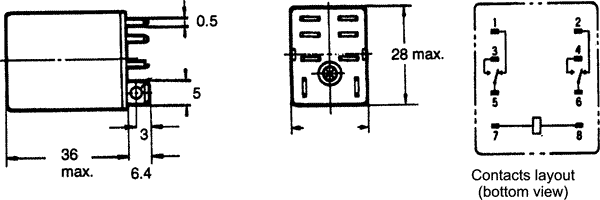

Dimensiuni exterioare : 28 x 21.5 x 36mm
Timp actionare : 25ms
Timp descarcare : 25ms
Serie releu : LY2
Rezistenta mecanica : 50000000cicluri
Putere comutata : 1100VA, 240W
Rezistenta pini : 50mΩ
Temperatura de lucru : -25...40C
