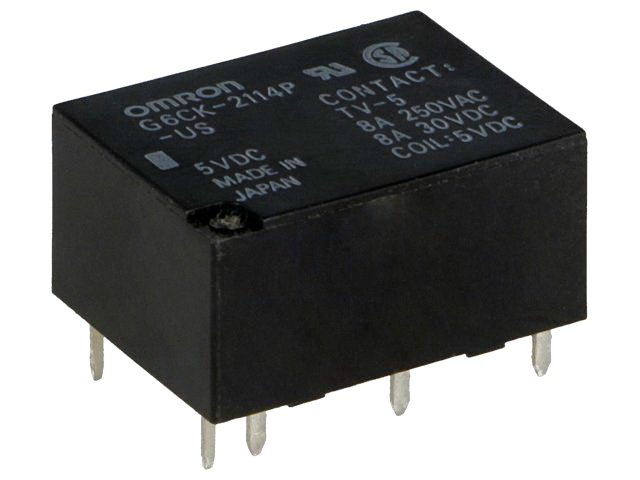

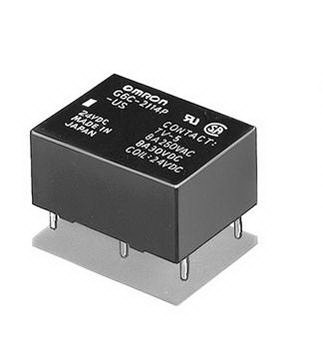

Relee și contactoare, socluriRelee electromagneticeReleu 3V, SPST-NO, SPTS-NC, 10A, G6C-2117C-US-DC3, OMRON
Relee și contactoare, socluriRelee electromagneticeReleu 3V, SPST-NO, SPTS-NC, 10A, G6C-2117C-US-DC3, OMRON
Product Category: General Purpose Relays
Manufacturer: Omron
RoHS: RoHS Compliant Details
Product: Power Relays
Type: PCB Power
Coil Voltage: 3 VDC
Contact Form: SPST (1 Form A), SPST (1 Form B)
Contact Current Rating: 8 A
Contact Termination: Solder Pin
Mounting Style: Through Hole
Switching Voltage: 380 VAC, 125 VDC
Coil Termination: Solder Pin
Coil Type: Non-Latching
Coil Resistance: 45 Ohms
Coil Current: 67 mA
Contact Material: Silver Alloy (Ag)
Brand: Omron Electronics
Contact Rating: 8 A at 250 VAC

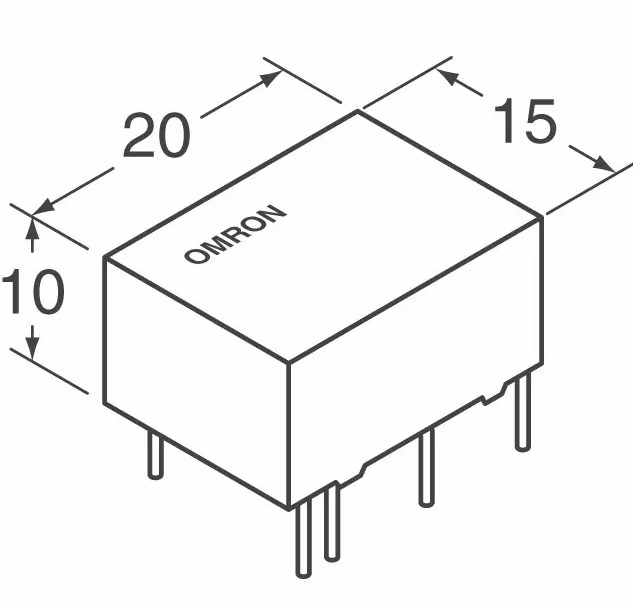

Height: 10 mm
Length: 20 mm
Maximum Switching Current: 8 A
Power Consumption: 200 mW
Series: G6C
