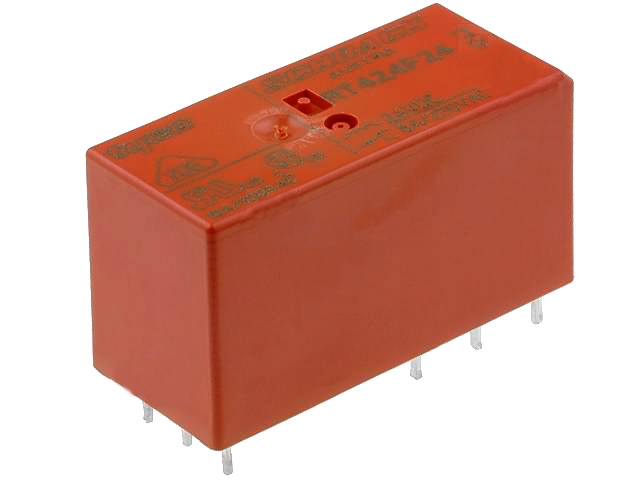

TE CONNECTIVITY / SCHRACK - 6-1393243-1 - RELAY, POWER, PCB, 6VDC, 8A
RELAY, POWER, PCB, 5VDC, 8A
Product Range: TE - Power PCB Relay RT2 Series
Coil Voltage: 6VDC
Contact Current: 3A
Contact Voltage VAC: 250V
Contact Voltage VDC: 24V
Contact Configuration: DPDT-CO
Coil Resistance: 90ohm
Relay Mounting: Through Hole
Coil Type: DC Monostable
Coil Voltage VDC Nom: 5V
Contact Current Max: 8A
Contact Voltage AC Nom: 250V
External Depth: 29mm
External Height: 15.7mm
External Width: 12.7mm
Nom Operating Power: 403mW
Relay Type: Power
