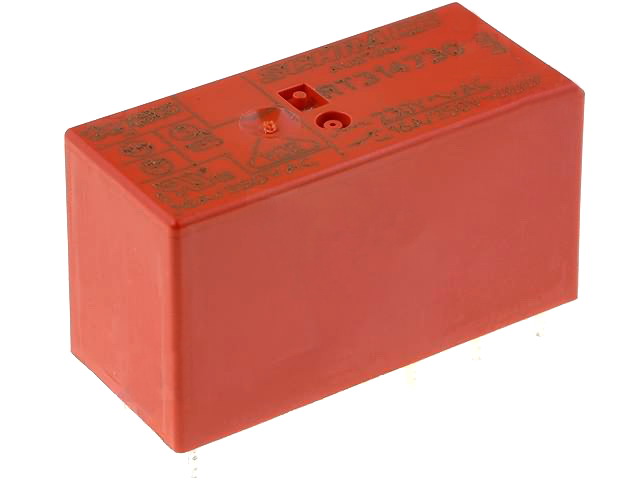

RT314730 Releu: electromagnetic; Config.pini: SPDT; Ubobina:230V AC; 400mW
Simbol original:0-1393240-7
Producator:TE CONNECTIVITY
Specificatii tehnice
Tip releu : electromagnetic
Configuratie pini : SPDT
Tensiune nominala bobina : 230V AC
Tensiune min. bobina : 172.5V AC
Montare : PCB
Tensiune comutata : max 250V AC

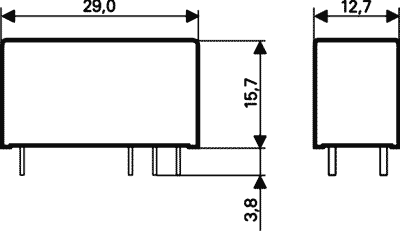

Dimensiuni exterioare : 29 x 12.7 x 15.7mm
Timp actionare : 7ms
Timp descarcare : 3ms
Pas pini : 5mm
Curent bobina : 3.2mA
Material pin : AgNi
Selectare putere prin bobina : 400mW
Serie releu : RT
Rezistenta mecanica : 10000000cicluri
Clasa etanseitate : IP40
Masa : 14g
Curent max.contacte : 16A
