Pagină de start>Relee și contactoare, socluri>Relee electromagnetice>Releu 220VAC, 10A, 3PDT, LY3-240VAC OMRON

Mareste

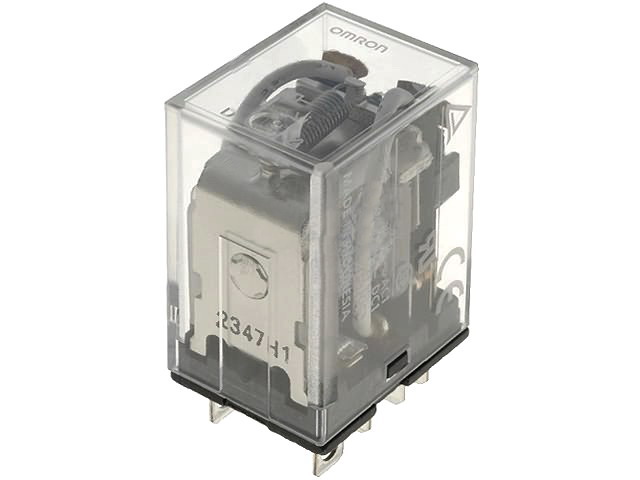

Releu 220VAC, 10A, 3PDT, LY3-240VAC OMRON

Denumire Produs: Releu 220VAC, 10A, 3PDT, LY3-240AC OMRON

COD: 60288

Preț orientativ: 136,23 RON

  RELAY, 3PDT, 240VAC

  • Product Range: OMRON - LY Series
  • Coil Voltage: 240VAC
  • Contact Current: 10A
  • Contact Configuration: 3PDT
  • Coil Resistance: 410ohm
  • Relay Mounting: Quick Connect
  •  approval Bodies: CE, CSA, LR, SEV, VDE
  • Approval Category: UL Recognised
  • Coil Current: 58.6mA
  • Coil Type: AC
  • Contact Current AC Max: 10A
  • Contact Current DC Max: 10A
  • Contact Current Max: 10A
  • Contact Current Rating: 10A
  • Contact Resistance: 50mohm
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Nom: 110V
  • Contact Voltage DC Max: 125V
  • Contact Voltage DC Nom: 24V
  • DC Coil Power: 1.4W
  • Dielectric Voltage Contact to Contact: 1000VAC

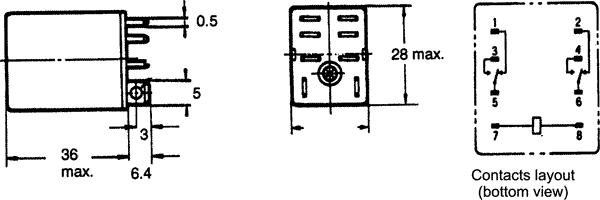

  • External Depth: 28mm
  • External Height: 36.5mm
  • External Length / Height: 36.5mm
  • External Width: 31.5mm
  • Insulation Resistance: 100Mohm
  • Mounting Type: Plug-In
  • No. of Poles: 3
  • Nom Operating Power: 1.4W
  • Operating Temperature Max: 40°C
  • Operating Temperature Min: -25°C
  • Operating Time: 25ms
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
