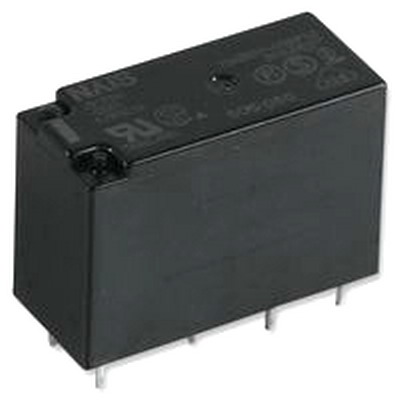

PANASONIC JW1FSN-DC12 - RELAY, SPDT, 12V  RELAY, SPCO, 12V

• Relay Type: Power
• Coil Voltage VDC Nom: 12V
• Contact Current Max: 10A
• Contact Voltage AC Nom: 250V
• Contact Voltage DC Nom: 30V
• Coil Resistance: 270ohm
• Contact Configuration: SPDT
• Coil Type: DC
• Coil Current: 44mA
• Nom Operating Power: 530mW
• Relay Mounting: Through Hole

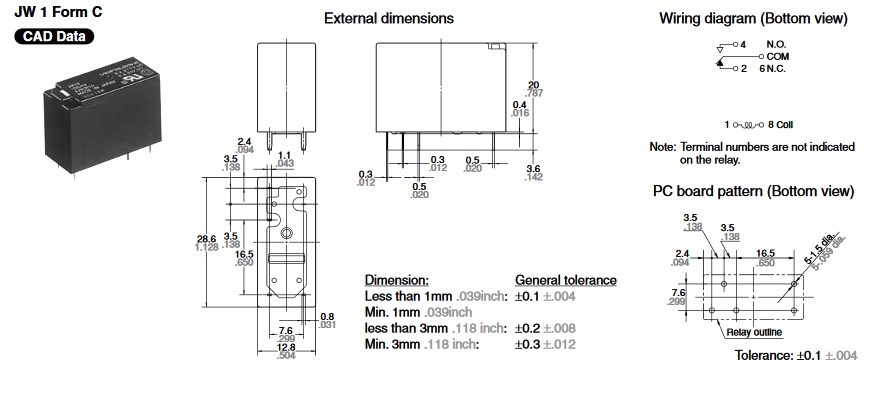

• External Height: 20mm
• External Width: 28.6mm
• External Depth: 12.8mm
• Contact Current AC Max: 10A
• Contact Current DC Max: 10A
• Contact Resistance: 100mohm
• Contact Voltage AC Max: 250V
• Contact Voltage DC Max: 30V
• DC Coil Power: 530mW
• External Length / Height: 20mm
• IP / NEMA Rating: IP67
• Mounting Type: PCB
• No. of Mechanical Operations: 106
• No. of Poles: 1
• Operating Temperature Max: 100°C
• Operating Temperature Min: -40°C
• Release Time: 5ms
• Series: JW
• Switching Power Max: 277VA
