Relee și contactoare, socluriRelee electromagneticeReleu 12VDC, auto, 50A, SPDT, 5 PINI, A2HM1CSQ12VDC1.6R, CIT Relay and Switch
Relee și contactoare, socluriRelee electromagneticeReleu 12VDC, auto, 50A, SPDT, 5 PINI, A2HM1CSQ12VDC1.6R, CIT Relay and Switch
Coil Type Non Latchig
Coil Voltage 12VDC

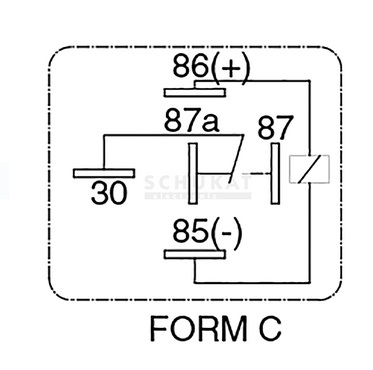

Contact Form SPDT (1 FormC )
Contact Rating (Current) 50
Switching Voltage 75VDC
Must Operate Voltage 7.8 VDC
Must Release Voltae 1.2 VDC
Operate Time 10 ms
Resistor, Sealed - Fully
Mounting Type Chassis Mount

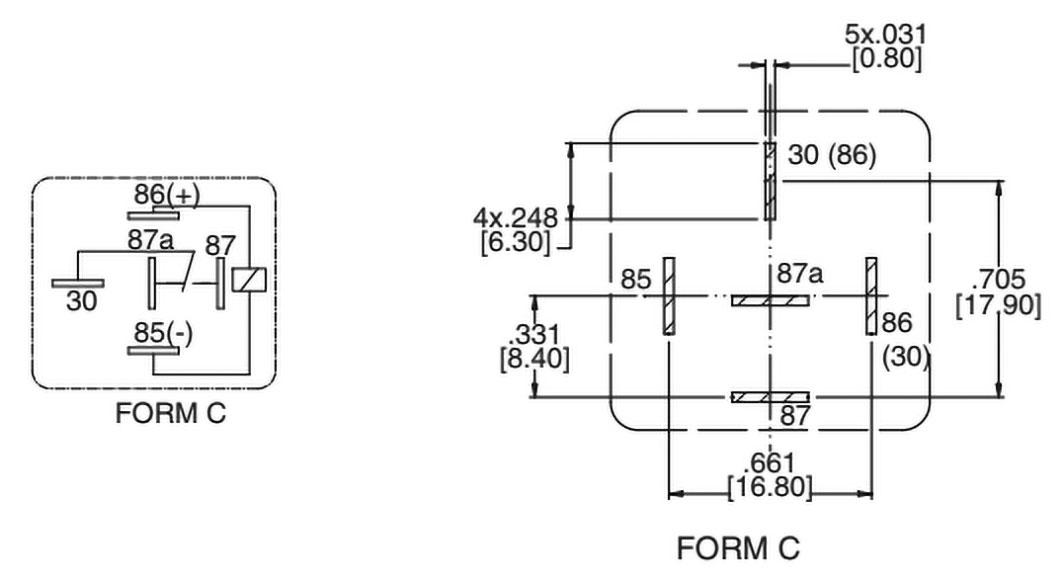

Termination Style Quick Connect - 0.250" (6.3mm)
Operating Temperature -40°C ~ 125°C
Contact Material Silver Tin Oxide (AgSnO)
Coil Power 1.6W
Coil Resistance 80 Ohms
