Relee și contactoare, socluriRelee autoReleu 110VDC, 30A, SPTS-NO, 4 pini, T9AS1D12-110, TYCO
Relee și contactoare, socluriRelee autoReleu 110VDC, 30A, SPTS-NO, 4 pini, T9AS1D12-110, TYCO
Manufacturer: TE Connectivity
Product Category: General Purpose Relays
RoHS: Details
REACH - SVHC:
Product: Power Relays
Type: Standard
Coil Voltage: 110 VDC

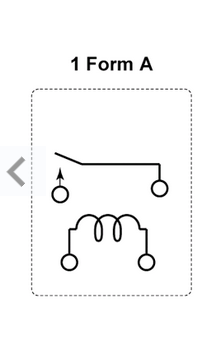

Relay Contact Form: 1 Form A (SPST-NO)
Contact Current Rating: 30 A
Contact Termination: Solder Pin
Mounting Style: PCB Mount
Switching Voltage: 277 VAC
Coil Type: Non-Latching
Coil Resistance: 12.1 kOhms
Contact Material: Silver Cadmium Oxide (AgCdO)
Series: T9A
Length: 32.5 mm
Width: 27.4 mm
Height: 27.9 mm
Brand: TE Connectivity / P&B
Contact Form: SPST (1 Form A)
Power Consumption: 1 W
Product Type: General Purpose Relays
