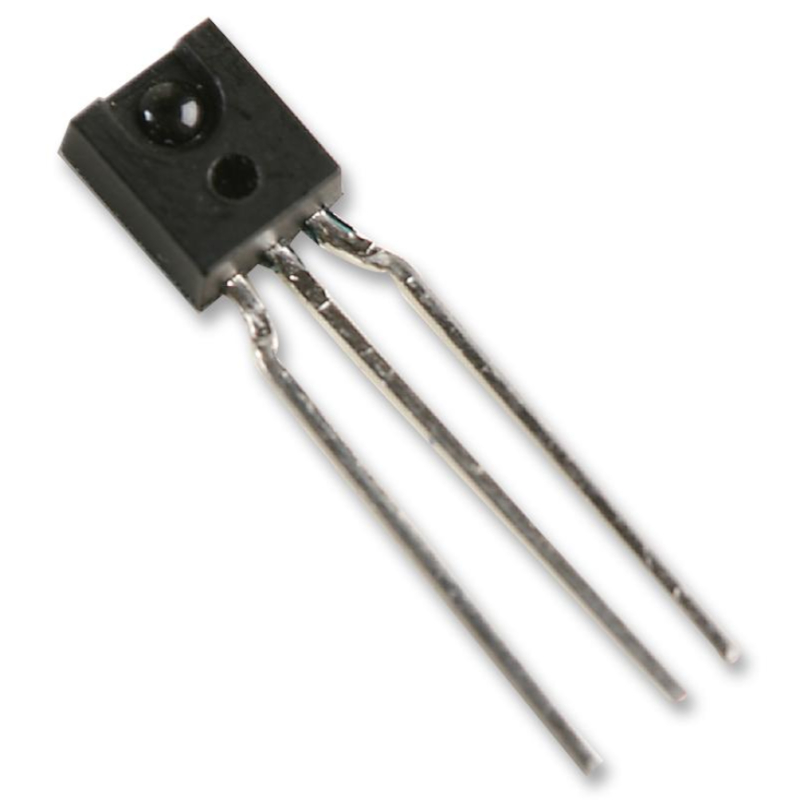

Receptor infrarosu, fotodioda, logic, compatibil TTL, 880nm, SIP-3, QSE159, ON SEMICONDUCTOR

Mareste

Receptor infrarosu, fotodioda, logic, compatibil TTL, 880nm, SIP-3, QSE159, ON SEMICONDUCTOR

Denumire Produs: QSE159, ON SEMICONDUCTOR

COD: 91313

Preț orientativ: 18,66 RON

Descriere
Data Sheet
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

The QSE159 is a Plastic Silicon Photosensor features a Schmitt trigger at output which provides hysteresis for noise immunity and pulse shaping. The TTL/LSTTL compatible output can drive up to ten TTL loads over supply currents from 4.5 to 16V. The device is marked with a color stripe for easy identification.

Bipolar silicon IC
Matched emitter - QEE113/QEE123
Daylight filter
High sensitivity
Direct TTL/LSTTL interface

Producător : ON SEMICONDUCTOR

Carcasă : SIP-3

Lungime de undă max. : 880nm

Temperatura de operare : -40...85°C

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
