Comutatoare, întrerupătoare, basculanteButoane Push, TactilePush buton tach, PCB, 6x6mm, SKHHLNA010, ALPS
Producator:
SWITCH, TACTILE, PCB, R/A, 1.57N
Operating Force: 1.57N
Contact
Contact Current Max: 50mA
Actuation Type: Side
Switch Terminals: Through Hole
Colour: Grey
Contact Current : Contact Voltage DC Max: 50mA
Contact Current : Contact Voltage DC Min: 10µA
Contact Current DC Max: 50mA
Contact Current Max: 50mA
Contact Resistance: 100mohm
Contact Voltage DC Max: 12VDC
Contact Voltage DC Min: 1VDC
Contact Voltage DC Nom: 12V

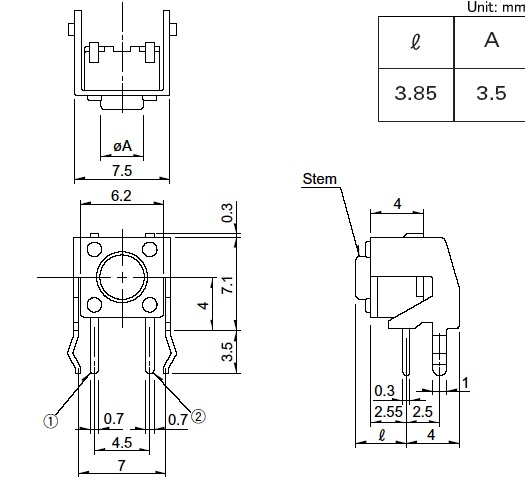

External Depth: 3.5mm
External Length / Height: 6mm
External Width: 6mm
Insulation Resistance: 100Mohm
Insulation Resistance Voltage: 100VDC
Mounting Type: Horizontal
No. of Electrical Operations: 500000
Operating Temperature Max:
Operating Temperature Min:
Pre-travel: 0.25mm
Proof Voltage: 250VAC
Series: SKHH
Shaft Length - Metric: 3.85mm
Switch Operation: SPST
Terminal Type: Through Hole
