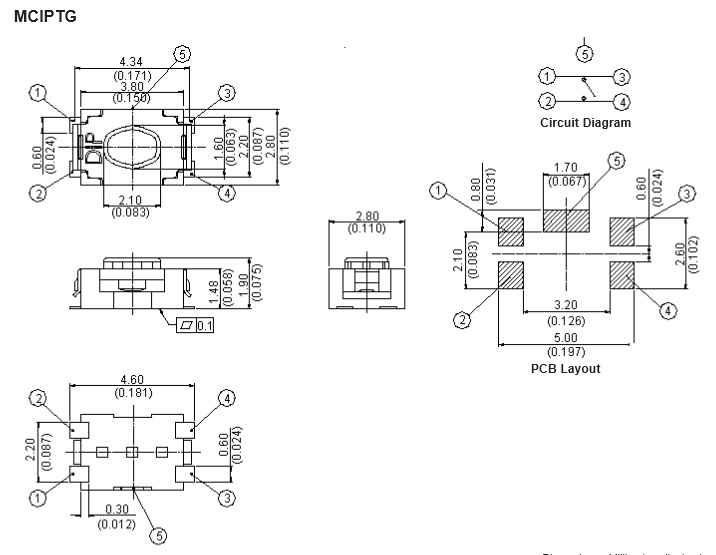

Comutatoare, întrerupătoare, basculanteButoane Push, TactilePush buton smd, SPST, 2.8X3.8mm, MCIPTG23K-V
Producator: MULTICOMP
Contact Configuration: SPST
Switch Terminals: Surface Mount
Contact Current Max: 50mA
Contact Voltage DC Nom: 12V
Switch Operation: Off-(On)
Operating Force: 1.57N
External Height: 1.9mm
External Width: 4.34mm
External Depth: 2.8mm
Actuator / Cap Colour: White
Contact Configuration: SPST
Contact Current DC Max: 50mA
Contact Material: Stainless Steel
Contact Plating: Silver
Contact Resistance: 100mohm
Contact
Current Rating: 50mA
Dielectric Strength VAC: 100VAC
External Length / Height: 1.9mm
IP / NEMA Rating: IP40
Insulation Resistance: 100Mohm
Insulation Resistance Voltage: 100VDC
No. of Electrical Operations: 100000
Operating Force Max: 160gf
Operating Temperature Max:
Operating Temperature Min:
Series: Vertical Push
Switch Operation: Off-(On)
Terminal Type: Surface Mount
Termination Type: SMD
Travel: 0.25mm
Voltage Rating V DC: 12VDC
