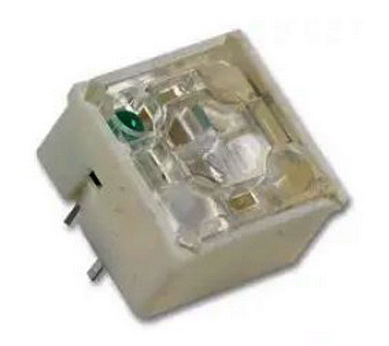

Comutatoare, întrerupătoare, basculanteButoane Push, TactilePush buton, neluminat, OFF-(ON), RF15, led verde, 3.14.100.032/0000, RAFI
Comutatoare, întrerupătoare, basculanteButoane Push, TactilePush buton, neluminat, OFF-(ON), RF15, led verde, 3.14.100.032/0000, RAFI
Manufacturer: RAFI
Product Category: Tactile Switches
RoHS: Details
Illuminated: Illuminated
Illumination Colour: Green
Lamp Type: LED
Mounting Style: Through Hole
Mounting Direction: Straight
Stem Height: 0.7 mm
Actuator: Square
Switch Function: OFF - (ON)
Operating Force: 2.9 N
Current Rating: 100 mA
Voltage Rating DC: 35 VDC
Voltage Rating AC: -
Power Rating: 2 W
Ground Terminal: No
Contact Form: SPST
Termination Style: Solder Pin
Color: White
Cap Colour: -
Length: 15 mm
Width: 15 mm
Height: 9.7 mm
Life: 1000000 Cycles
IP Rating: -
Brand: RAFI
Contact Plating: Gold
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 25 C
Operating Temperature Range: - 25 C to + 70 C
Product Type: Tactile Switches
Subcategory: Switches
Travel: 0.5 mm
Part # Aliases: 3.14100.032/0000 3.14100.0320000 3.14100.032//0000
