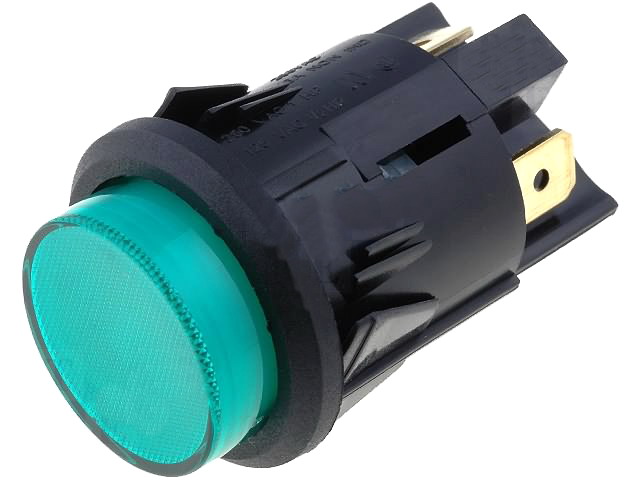

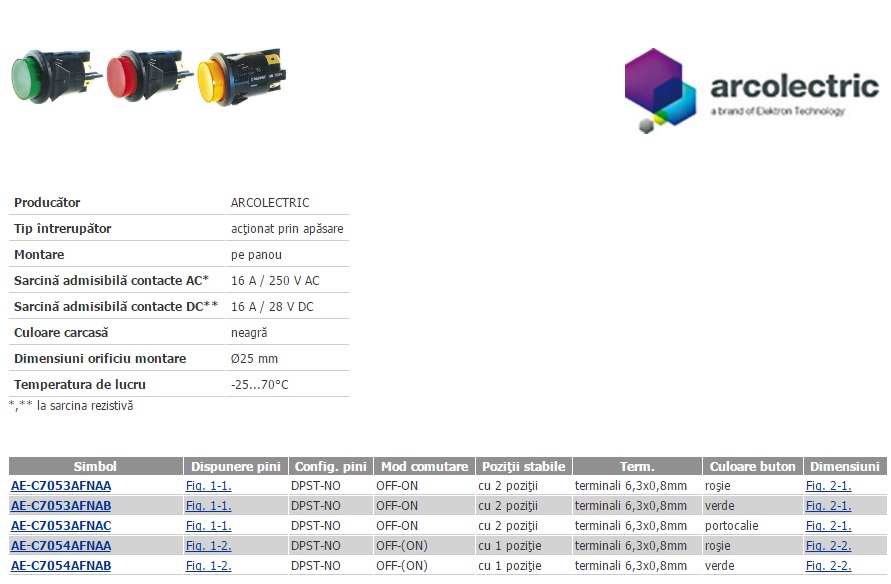

Push buton, rotund verde, 16A, ON-OFF, 4 pini, DPST-NO, orificiu montare Ø25mm, C7054AFNAB

Intrerupator:actionat prin apasare; monostabil ; Ø25mm; 230V
Producator: ARCOLECTRIC

Simbol original: C7054AFBG3

Producator ARCOLECTRIC
Tip intrerupator actionat prin apasare
Configuratie pini DPST- NO
Pozitii stabile bistabile
Mod comutare ON-OFF
Numar sectiuni 2
Sarcina admisibila contacte AC* 16 A / 250 V
Sarcina admisibila contacte DC** 16 A / 28 V
Iluminare lampa cu neon 230V
Tensiune iluminare 230 V
Culoare carcasa neagra

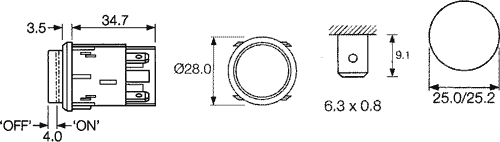

Dimensiuni orificiu montare Ø25 mm

SPST : single pole single throw
SPDT : single pole double throw
DPST : double pole single throw
DPDT : double pole double throw


For multipole switches:
3P : 3 pole
   3PST means 3 pole single throw
4P : 4 pole
   4PDT means 4 pole double throw


Contacts position:
NO : normally open contacts are operated to "make"
NC : normally closed contacts are operated to "break"


For switches with 3 stable positions:
SP3T : single pole ON-OFF-ON
DP3T : double pole ON-OFF-ON
Momentary action: the state of the switch will change only whilst the operating force is applied. When released the switch will return to its original state
