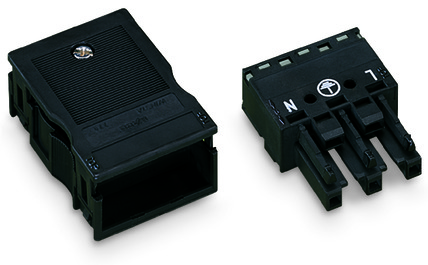

Priza; mufa 3 poli; 25A, carcasa; 2 cabluri Ø8 - 11.5mm; 770-103, WAGO

Denumire Produs: 770-103, WAGO

COD: 71600

Preț orientativ: 27,22 RON

Manufacturer: Wago
No. of poles 3
Pin spacing 10 mm (0.394 in)
Total number of connection points 6
Total number of potentials 3
Potential marking L ⏚ N
Color black
Coding A
Rated voltage (III / 3) [V] 250 V
Rated impulse voltage (III / 3) [kV] 4 kV
Pollution degree (1) 3
Rated current [A] 25 A
Mating cycles 200, without resistive load
Degree of protection IP 2xC

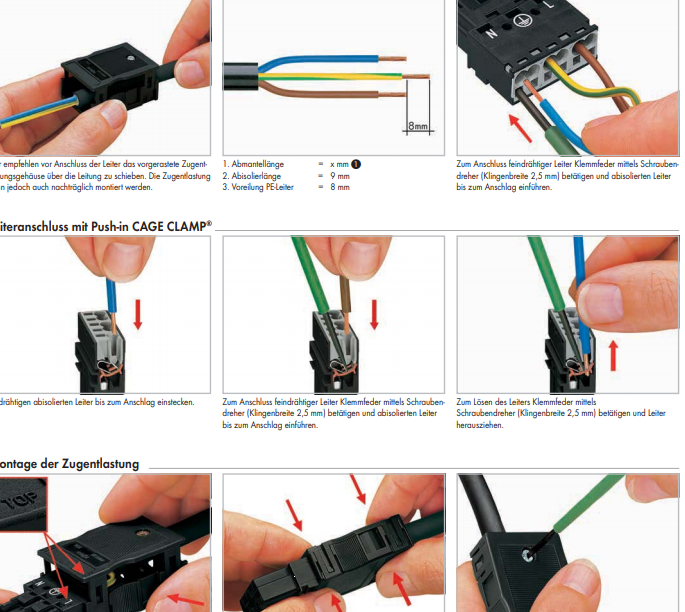

Connection technology Push-in CAGE CLAMP®
Number of connection points connector 2
Actuation type Operating tool
Nominal cross section 4 mm² / 12 AWG
Solid conductor 0.5 … 4 mm² / 20 … 12 AWG
Solid conductor, push-in termination 1.5 … 4 mm² / 16 … 12 AWG
Stranded conductor 0.5 … 2.5 mm² / 20 … 14 AWG
Fine-stranded conductor 0.5 … 4 mm² / 20 … 12 AWG
Fine-stranded conductor with ferrule with plastic collar 0.25 … 1.5 mm² / 20 … 16 AWG
Fine-stranded conductor with ferrule without plastic collar 0.25 … 2.5 mm² / 20 … 14 AWG
Fine-stranded conductor with ferrule, push-in termination, m 1.5 mm² / 16 AWG
Strip length 9 mm / 0.35 Inch
Mating force of a plug-in connection approx. 20 … 70 N (depending on pole number)
Unmating force of a plug-in connection when unlocked: approx. 20 … 70 N (depending on pole number)
Retention force of a plug-in connection when locked: > 80N
Insulating material Polyamide 66 (PA 66)
Flammability class per UL94 V0
Clamping spring material Chrome nickel spring steel (CrNi)
Contact material Copper or copper alloy, surface-treated
Processing temperature -5°C ... +40°C
Fire load [MJ] 0.42 MJ
Weight [g] 19.522 g

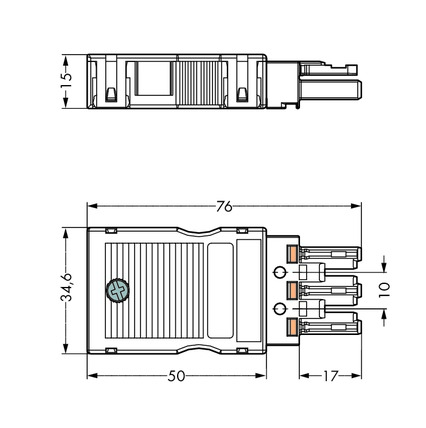

Width 34.6 mm / 1.362 Inch
Height 15 mm / 0.591 Inch
Depth 75.9 mm / 2.988 Inch


ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
