Componente electronice pasivePotentiometrePotentiometre axiale mono, stereoPotentiometru 10K, stereo, log, 15A, RK14K12C0A1S, ALPS

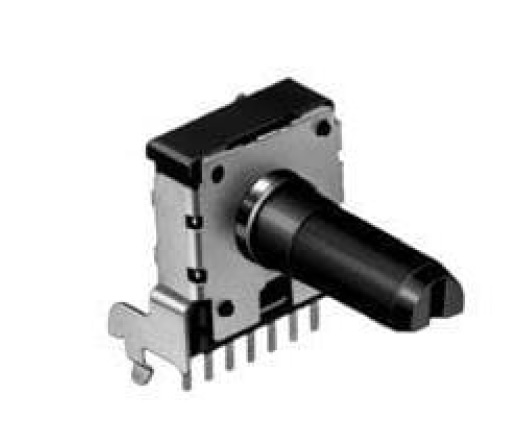

Componente electronice pasivePotentiometrePotentiometre axiale mono, stereoPotentiometru 10K, stereo, log, 15A, RK14K12C0A1S, ALPS
Part number RK14K12C0A1S

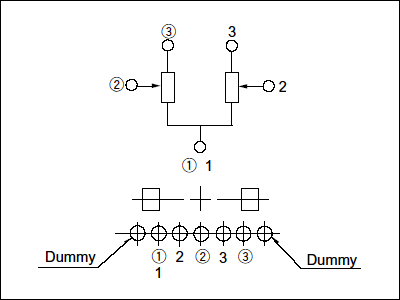

Number of resistor elements Dual-unit

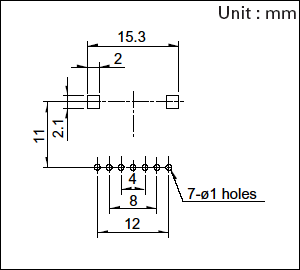

Mounting direction Vertical type
Bushing Without
Shaft types Flat

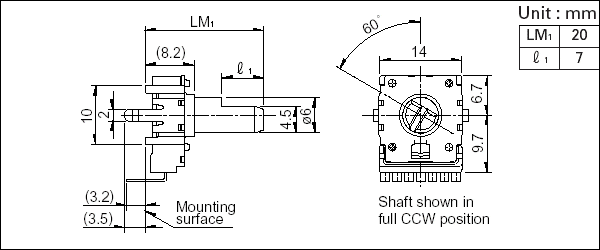

Length of the shaft LM1 20mm
Center detent Without
Total resistance 10kΩ

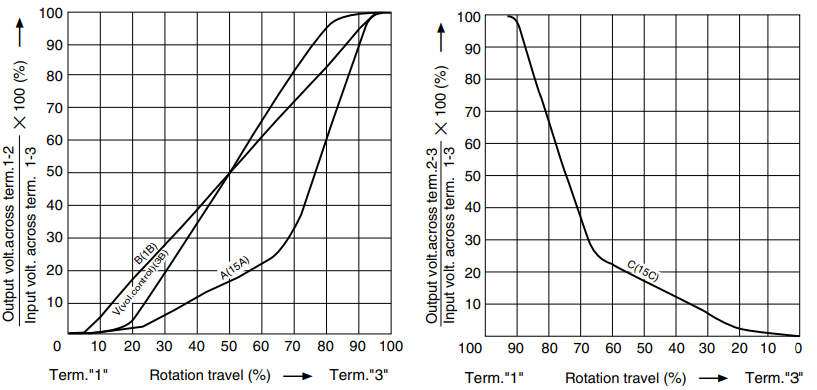

Resistance taper 15A
Operating temperature range -10℃ to +70℃
Electrical Performance Total resistance tolerance ±20%
Rated power 0.05W
Maximum operating voltage 50V AC for AC only
Gang error -40dB to 0dB 3dB max.
Insulation resistance 100MΩ min. 250V DC
