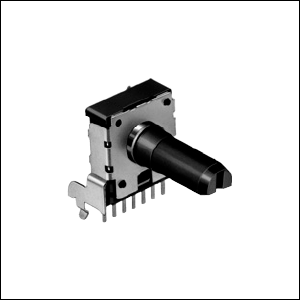

Potentiometru 10k, stereo, log, 15A, RK14K12A0A3C, ALPS

Part number RK14K12A0A3C

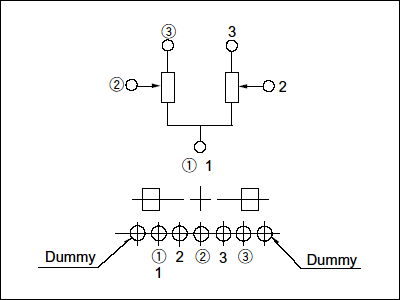

Number of resistor elements Dual-unit

(Not applicable to DC)

Mounting direction Horizontal type

Bushing Without

Shaft types Flat

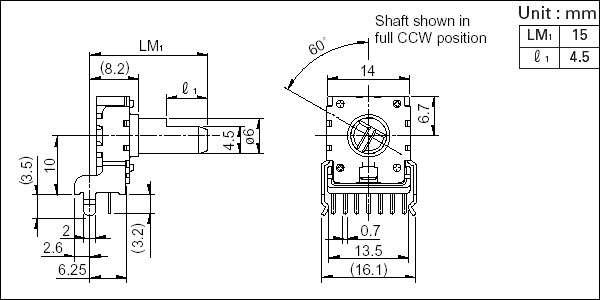

Length of the shaft LM1 15mm

Center detent Without

Total resistance 10kΩ

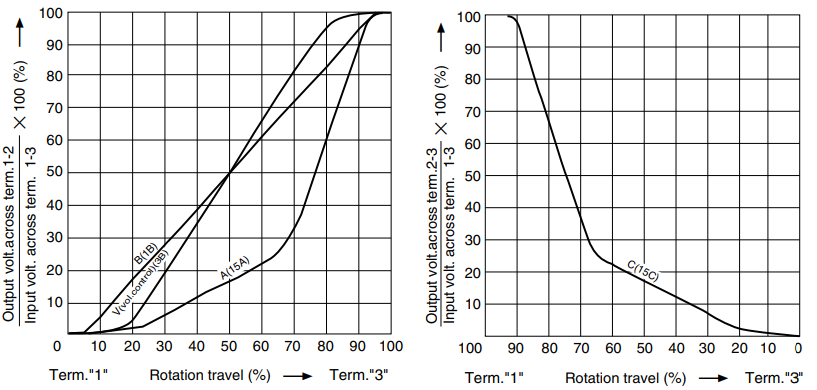

Resistance taper 15A

Operating temperature range -10℃ to +70℃

Electrical Performance Total resistance tolerance ±20%

Rated power 0.05W

Maximum operating voltage 50V AC for AC only

Gang error -40dB to 0dB 3dB max.

Insulation resistance 100MΩ min. 250V DC

Voltage proof 300V AC for 1 minute

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala.
