Pagină de start>Componente electronice pasive>Potentiometre>Potentiometre de putere bobinate>Potentiometru 100K, dublu, lin, 27ESA104MMF50NF, TYCO

Mareste

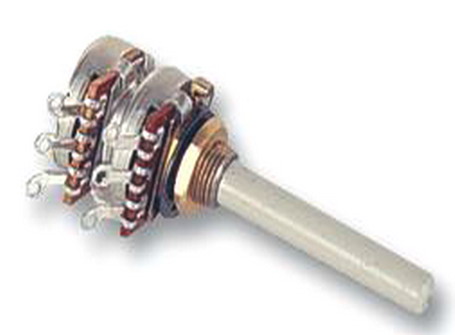

Potentiometru 100K, dublu, lin, 27ESA104MMF50NF, TYCO

Denumire Produs: 27ESA104MMF50NF,TYCO

COD: 57355

Preț orientativ: 66,55 RON


 POTENTIOMETER, D/GANG LIN 100K

  • Track Resistance: 100kohm
  • Track Taper: Linear
  • No. of Turns: 1
  • Shaft Diameter: 6.35mm
  • Shaft Length - Metric: 50mm
  • Resistance Tolerance: ± 20%
  • Voltage Rating: 500V
  • Power Rating: 400mW
  • Potentiometer Mounting: Panel
  • No. of Gangs: 2
  • Adjustment Type: Side
  • Body Diameter: 20.4mm
  • External Length / Height: 21mm
  • Full Power Rating Temperature: 40C
  • Insulator Material: Plastic
  • Mounting Type: Through Hole
  • Operating Temperature Range: -25C to +70C
  • Resistance: 10kohm
  • Resistor Element Material: Metal Foil
  • Rotation Electrical Angle: 267 grade
  • Rotation Mechanical Angle: 300 grade
  • Series: 27
  • Termination Type: Solder
  • Thread Size: 7.4 M9.5
  • Voltage Rating V DC: 500V
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
