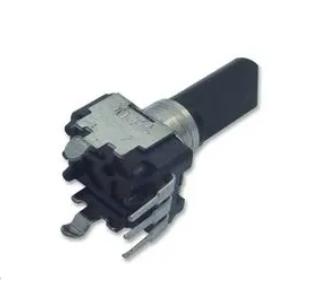

Componente electronice pasivePotentiometrePotentiometre axiale mono, stereoPotentiometru, axial, lin, 1B, 100K, RK09K1130C94, Alps
Componente electronice pasivePotentiometrePotentiometre axiale mono, stereoPotentiometru, axial, lin, 1B, 100K, RK09K1130C94, Alps
Furnizor: ALPS
POTENTIOMETER, 100KB
Track Resistance:100kohm

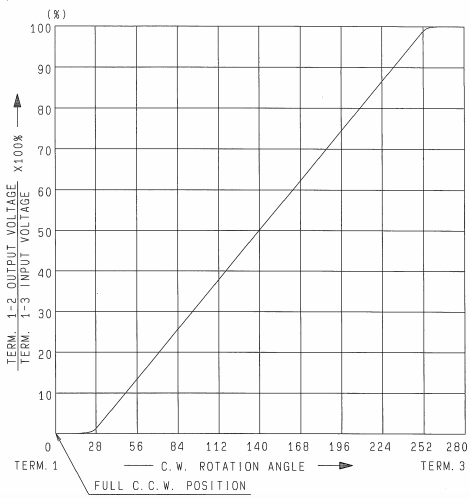

Track Taper:Linear
Track Resistance:100kohm
Track Taper:Linear
Caracteristici taper : 1B
No. of Turns:1
Resistance Tolerance:± 20%
Voltage Rating:20V dc
Series:RK09
Power Rating:50mW
Mounting Type:Through Hole
No. of Gangs:1
Adjustment Type:Vertical
Resistor Element Type:Carbon
Case Style:PCB Mount
End Resistance:100kohm
External Length / Height:6.8mm
External Width:9.8mm
Operating Temperature Range:-10C to +50C
Resistance:100kohm
Rotation Mechanical Angle:300
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
No. of Turns:1
Resistance Tolerance:± 20%
Voltage Rating:20V dc
Series:RK09
Power Rating:50mW
Mounting Type:Through Hole
No. of Gangs:1
Adjustment Type:Vertical
Resistor Element Type:Carbon
Case Style:PCB Mount
End Resistance:100kohm
External Length / Height:6.8mm
External Width:9.8mm
Operating Temperature Range:-10C to +50C
Resistance:100kohm
Rotation Mechanical Angle:300
