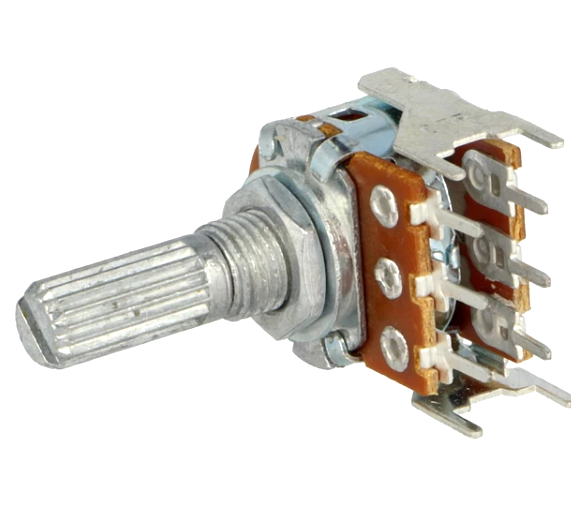

Componente electronice pasivePotentiometrePotentiometre axiale mono, stereoPotentiometru 50K, stereo, lin, R16140G-B50K
Componente electronice pasivePotentiometrePotentiometre axiale mono, stereoPotentiometru 50K, stereo, lin, R16140G-B50K
Manufacturer CTR
Type of potentiometer shaft
Kind of potentiometer single turn
Resistance 50kΩ
Power 100mW
Tolerance ±20%
Mounting THT
Shaft diameter 6mm
Shaft length 13.5mm
Characteristics linear
Body dimensions Ø17x11.5mm
Thread length 6.5mm
Body material metal
Potentiometer features stereo
Track material carbon
Shaft surface knurled
Mechanical rotation angle 300 ±5°
L shaft length 20mm
Max. operating voltage 20V DC, 150V AC
Mounting holes pitch 5mm
