Placa dezvoltare, Tiva C, MPU9150, TMP006, BOOSTXL-SENSHUB, TEXAS INSTRUMENTS

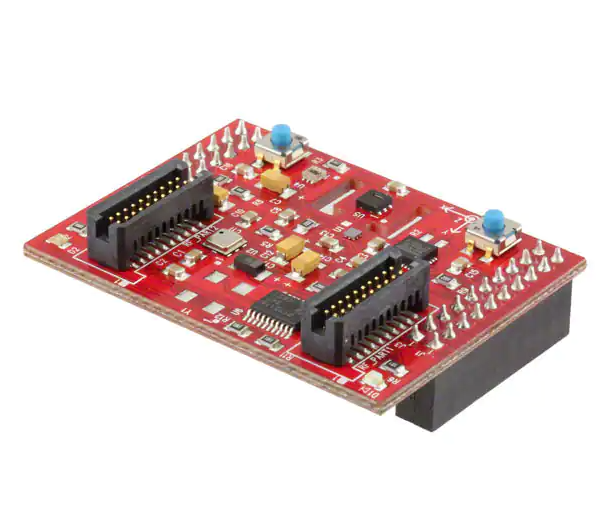

BOOSTXL-SENSHUB is a low-cost extension board for the Tiva™ C Series TM4C LaunchPad EK-TM4C123GXL evaluation platform for ARM® Cortex™-M4F-based microcontrollers. The Sensor Hub enables the user to create and model innovative prototype solutions that leverage the processing and floating-point capabilities of the TM4C123GH6PM MCU coupled with motion and environmental sensors. The Sensor Hub Booster Pack plugs in to the Booster Pack XL headers located on the top of the LaunchPad.



    One user LED

    One power LED

    EM connector for additional wireless expansion

    9-axis InvenSense MPU9150 motion sensor

    TMP006 non contact infrared temperature sensor

    Two pairs of 10pin headers provide standard LaunchPad interface

    Primary header (outer row) compatible with other MCU LaunchPads

    Secondary header (inner row) offers additional Tiva C series based expansion signals

    Two user input buttons and LEDs

    wireless evaluation module (EM) interface connection
