Conectori, socluri, regleteConectori industrialiPin socket, MCP, 0.5-1mm2, 1-968849-1, TE Connectivity
Conectori, socluri, regleteConectori industrialiPin socket, MCP, 0.5-1mm2, 1-968849-1, TE Connectivity

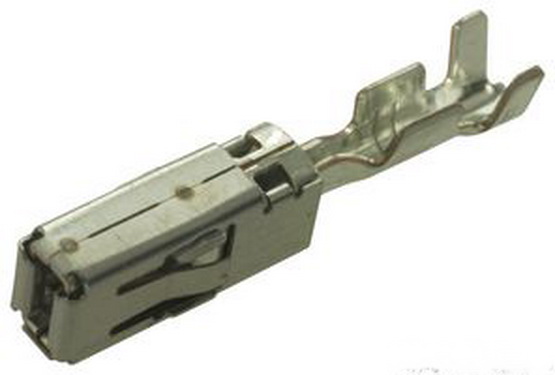

The 1-968849-1 is a standard Receptacle Contact with crimp termination, CuNiSi base with tin (Sn) plating, 0.5 to 1mm² wire.
Up to 40A (at 20°C ambient temperature) Current carrying capacity
-40 to 130°C Operating temperature range
Aplicaţii Industrial
1-968849-1, Rectangular Power Contact, MCP Series, Tin Plated Contacts, Copper Nickel Silicon, Socket, Crimp
Product Range: MCP Series
Contact Plating: Tin Plated Contacts
Contact Material: Copper Nickel Silicon
Contact Gender: Socket
Contact Termination Type: Crimp
Wire Size AWG Min: 20AWG
Wire Size AWG Max: 17AWG
RoHS Phthalates Compliant: To Be Advised
