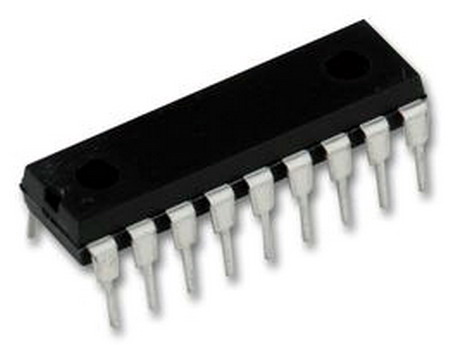

MICROCHIP - PIC16F716-I/P - IC, 8BIT FLASH MCU, 16F716, DIP18

  IC, 8BIT FLASH MCU, 16F716, DIP18

• Controller Family/Series: PIC16F
• Core Size: 8bit
• No. of I/O's: 13
• Supply Voltage Min: 2V
• Supply Voltage Max: 5.5V
• Digital IC Case Style: DIP
• No. of Pins: 18
• Program Memory Size: 2Kwords
• RAM Memory Size: 128Byte
• CPU Speed: 20MHz
• Peripherals: ADC, PWM, Timer
• Embedded Interface Type: (Not Available)
• Operating Temperature Min: -40°C
• Operating Temperature Max: 85°C
• MSL: (Not Applicable)
• Clock Frequency: 20MHz
• Device Marking: PIC16F716-I/P
• Flash Memory Size: 3.5KB
• IC Generic Number: 16F716
• IC Temperature Range: Industrial
• Logic Function Number: 16F716
• Memory Configuration: 2K x 14
• Memory Size: 3584B
• Memory Type: FLASH
• Microprocessor/Controller Features: POR, PWRT, OST, WDT, ICSP, ECCP.
• No. of ADC Inputs: 4
• No. of Bits: 8
• No. of PWM Channels: 4
• No. of Timers: 4
• Number of bits in ADC: 8
• Operating Temperature Range: -40°C to +85°C
• Oscillator Type: External, Internal
