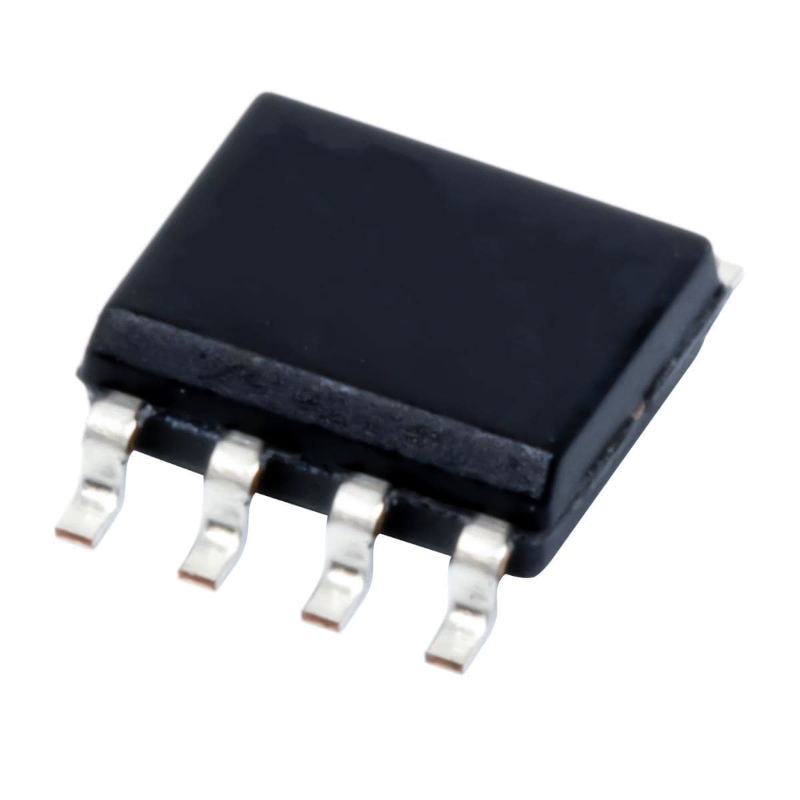

Componente electronice activeCircuite integrateCircuite integrate analogice, comparatoare, drivereOPA602AU, Amplificator operational, TEXAS INSTRUMENTS
Componente electronice activeCircuite integrateCircuite integrate analogice, comparatoare, drivereOPA602AU, Amplificator operational, TEXAS INSTRUMENTS
Producător : Texas Instruments
Product type : Precision Amplifiers
Number of Channels:1 Channel
GBP - Gain Bandwidth Product:6.5 MHz
SR - Slew Rate:35 V/us
CMRR - Common Mode Rejection Ratio : 75 dB to 100 dB
Output Current per Channel : 20 mA
Ib - Input Bias Current : 2 pA
Vos - Input Offset Voltage : 1 mV
en - Input Voltage Noise Density : 23 nV/sqrt Hz
Operating Supply Current : 3 mA
Minimum Operating Temperature : - 25 C
Maximum Operating Temperature : + 85 C
Shutdown : No Shutdown
Mounting Style : SMD/SMT
Package/Case : SOIC-8
Amplifier Type : Wideband Amplifier
Height : 1.58 mm
Length : 4.9 mm
Output Type : Rail-to-Rail
Supply Type : Dual
Technology : BiFET
Width : 3.91 mm
Dual Supply Voltage : +/- 9 V, +/- 12 V, +/- 15 V
In - Input Noise Current Density : 0.0006 pA/sqrt Hz
Maximum Dual Supply Voltage : +/- 18 V
Minimum Dual Supply Voltage : +/- 5 V
Moisture Sensitive : Yes
Operating Supply Voltage : +/- 5 V to +/- 18 V
Pd - Power Dissipation:1000 mW
Voltage Gain dB : 100 dB
