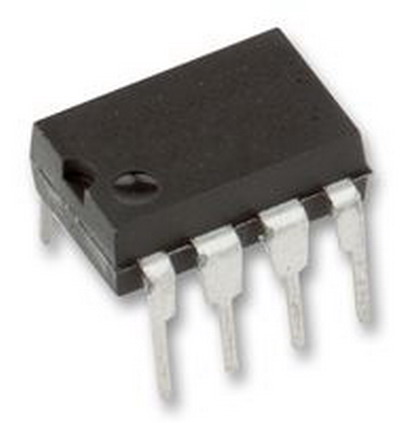

OP177GP, Operational Amplifier, Single, 600 kHz, 0.3 V/µs, ± 3V to ± 18V, DIP, 8 Pins

Denumire Produs: OP177GP

COD: 41572

Preț orientativ: 42,56 RON

OP177GP Circuit integrat: amplificator operaţional; DIP8

 Producator: ANALOG DEVICES Simbol original: OP177GP
Manufacturer: Analog Devices Inc.
Product Category: Precision Amplifiers
RoHS: Details
Series: OP177
Number of Channels: 1 Channel
GBP - Gain Bandwidth Product: 600 kHz
SR - Slew Rate: 300 mV/us
CMRR - Common Mode Rejection Ratio: 140 dB
Output Current per Channel: 100 mA
Ib - Input Bias Current: 2.8 nA
Vos - Input Offset Voltage: 20 uV
en - Input Voltage Noise Density: 100 nV/sqrt Hz
Supply Voltage - Max: +/- 22 V
Supply Voltage - Min: +/- 18 V
Operating Supply Current: 1.6 mA
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Shutdown: No Shutdown
Mounting Style: Through Hole
Package/Case: PDIP-8
Packaging: Tube
Brand: Analog Devices
Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
Height: 3.43 mm
Input Voltage Range - Max: 14 V
Length: 9.27 mm
Maximum Dual Supply Voltage: +/- 18 V
Maximum Input Resistance: 45 MOhms
Minimum Dual Supply Voltage: +/- 3 V
Pd - Power Dissipation: 500 mW (1/2 W)
Product: Precision Amplifiers
Product Type: Precision Amplifiers
PSRR - Power Supply Rejection Ratio: 120 dB


ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
