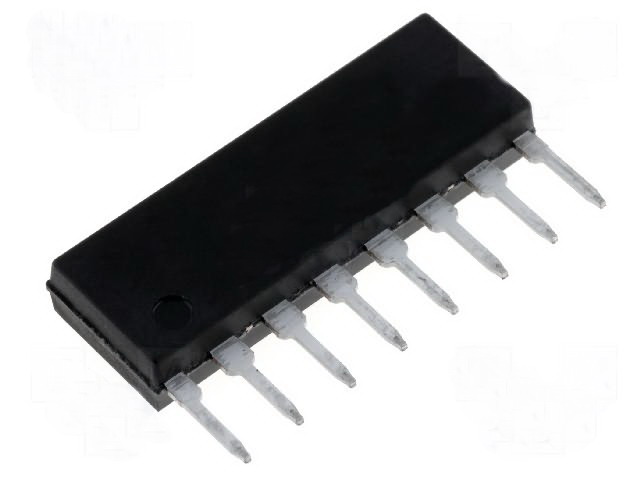

NJM4558L, Op Amps Dual High Gain, SIL, NJR

Denumire Produs: NJM4558L, NJR

COD: 21122

Preț orientativ: 18,93 RON

NJM4558L Circuit integrat, amplif. oper. 2x +-22V 3MHz 1V/us/ 8 in line SIP8

  Inlocuire pentru: KA4558S, TA75558S

Manufacturer:NJR
Product Category:Operational Amplifiers - Op Amps
RoHS: Details
Mounting Style:Through Hole
Package/Case:SIP-8
Number of Channels:2 Channel
GBP - Gain Bandwidth Product:3 MHz
SR - Slew Rate:1 V/us
Vos - Input Offset Voltage:6 mV
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 85 C
Ib - Input Bias Current:500 nA
Operating Supply Current:5.7 mA
Shutdown:No Shutdown
CMRR - Common Mode Rejection Ratio:70 dB
Series:NJM4558
Packaging:Tube
Amplifier Type:High Gain Amplifier
Height:6.4 mm
Length:19 mm
Product:Operational Amplifiers
Supply Type:Dual
Technology:Bipolar
Width:3 mm
Brand:NJR
Dual Supply Voltage:+/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
Maximum Dual Supply Voltage:+/- 18 V
Minimum Dual Supply Voltage:+/- 4 V
Operating Supply Voltage:+/- 4 V to +/- 18 V
Pd - Power Dissipation:250 mW
Product Type:Op Amps - Operational Amplifiers

Subcategory:Amplifier ICs
Tradename:NJM4558


ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
