Pagină de start>Componente electronice active>Circuite integrate>Circuite integrate analogice, comparatoare, drivere>NJM4556AM, Op Amps, Dual High Current, DMP-8,

Mareste

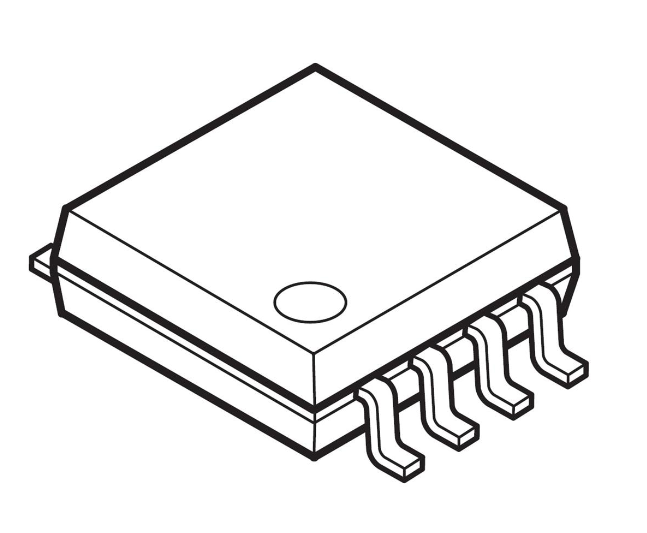

NJM4556AM, Op Amps, Dual High Current, DMP-8,

Denumire Produs: NJM4556AM,

COD: 70915

Preț orientativ: 23,33 RON

Manufacturer: Nisshinbo Micro Devices
Product Category: Operational Amplifiers - Op Amps
RoHS: Details
Mounting Style: SMD/SMT
Package/Case: DMP-8
Number of Channels: 2 Channel
Supply Voltage - Max: +/- 18 V
GBP - Gain Bandwidth Product: 8 MHz
Output Current per Channel: 70 mA
SR - Slew Rate: 3 V/us
Vos - Input Offset Voltage: 6 mV
Supply Voltage - Min: +/- 2 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Ib - Input Bias Current: 500 nA
Operating Supply Current: 12 mA
Shutdown: No Shutdown
CMRR - Common Mode Rejection Ratio: 70 dB
en - Input Voltage Noise Density: 10 nV/sqrt Hz
Series: NJM4556
Packaging: Tube
Amplifier Type: High Gain Amplifier
Brand: Nisshinbo
Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V
Height: 1.6 mm
Length: 5 mm
Maximum Dual Supply Voltage: +/- 18 V
Minimum Dual Supply Voltage: +/- 2 V
Operating Supply Voltage: +/- 2 V to +/- 18 V
Pd - Power Dissipation: 300 mW
Product: Operational Amplifiers
Product Type: Op Amps - Operational Amplifiers

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
