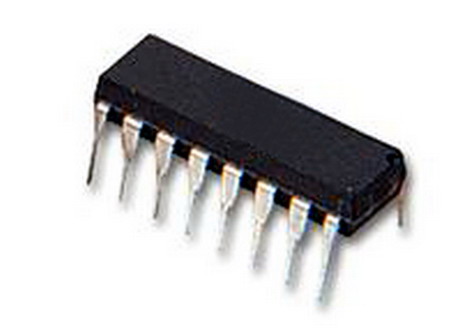

NE564N, Phase-locked loop, NXP

Descriere
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

DESCRIPTION

The NE/SE564 is a versatile, high guaranteed frequency

phase-locked loop designed for operation up to 50MHz. As shown

in the Block Diagram, the NE/SE564 consists of a VCO, limiter,

phase comparator, and post detection processor.

FEATURES

• Operation with single 5V supply

• TTL-compatible inputs and outputs

• Guaranteed operation to 50MHz

• External loop gain control

• Reduced carrier feedthrough

• No elaborate filtering needed in FSK applications

• Can be used as a modulator

• Variable loop gain (externally controlled)

APPLICATIONS

• High speed modems

• FSK receivers and transmitters

• Frequency Synthesizers

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.

Norul de tag-uri

Afisor LCD Grafic Ampermetru Analogic Amplificator Audio Arduino Balun Buton Panou Buzzer Card reader Comutator cu came Contactor Contactor el-mec Convertizor trifazat Cutie Decadica Datalogger DDR2 Drone extensions Invertor Invertor trifazat 5.5kW Invertor vectorial trifazat IoT Jumper Wire Microchip ARM Motor Driver Multimetru Digital Numarator impulsuri Placa dezvoltare Proxi Smart Plug Raspberry Pi 3 Regulator de proces Regulator tensiune Relee comutare faze Relee supraveghere faze Robotica Sensor DFROBOT Sensor OKYSTAR Sensor Seeed Set sigurante shield SSR Suport baterii MR18650 3.7V KEYS1049 Sursa alimentare led IP67 Sursa laborator Termostat Termostat 2 sensori Timer Timer scara Timer scolar Variator tensiune trifazat Voltage Regulator

NE564N, Phase-locked loop, NXP

Denumire Produs: NE564N, NXP
