Mufa UHF, SO239, panou, 83-1R, AMPHENOL

Denumire Produs: UHF-201

COD: 16792

Preț: 37,90 RON

(Prețul include TVA)

In stoc

Adaugati la lista de favorite

Cantitate:

Descriere
Data Sheet
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

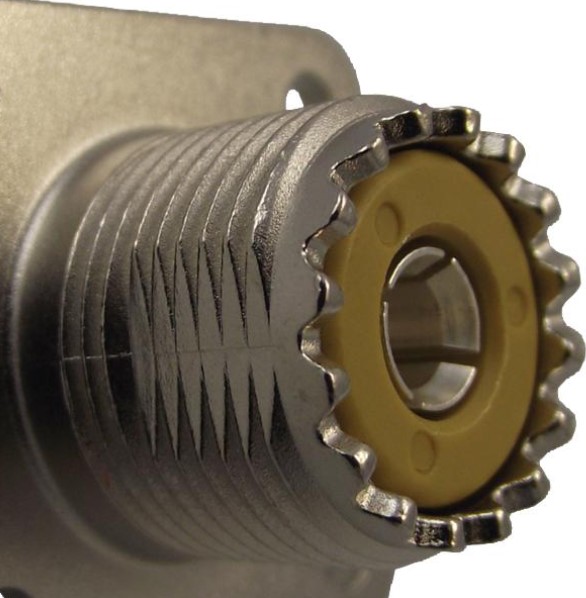

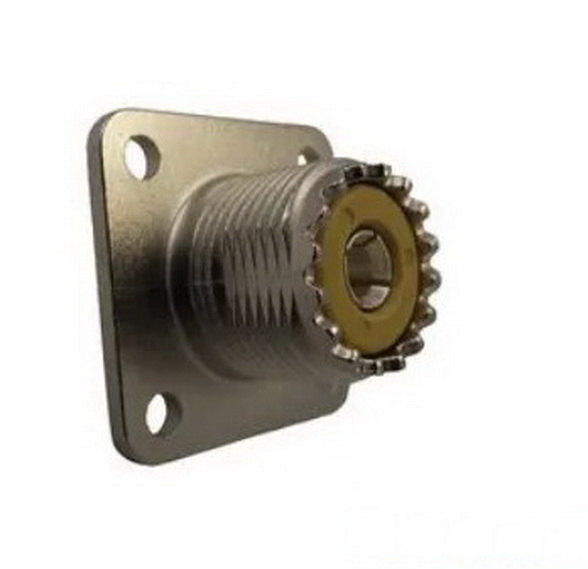

The 83-1R (SO-239) is a RF Connector, UHF series, UHF straight Jack with silver-plated brass contacts and solder contact termination. Body made up of zinc die-cast with nickel-plated finish and PBT insulator. The UHF coaxial connector is general purpose units developed for use in low frequency system of 300MHz. UHF connector is popularly used because of its ease of assembly. The UHF solderable screw-on termination feature requires no specialized crimping tools.

Large-size threaded coupling is a rugged design

4-hole Flange mounting

Standard polarity

Standard thread direction

500V Peak voltage rating

500 Mating cycles

-65 to 165°C Temperature range

Aplicaţii

RF Communications, Communications & Networking, Aerospace, Defence, Military

Connector Type: UHF Coaxial Connector

Body Style: Straiht Flanged Jack

Coaxial Termination: Solder Impedance:

Contact Material: Bras

Contact Plating: Silver Plated ontacts

Frequency Max: 300MHz

Connector Mounting: Panel Mount
