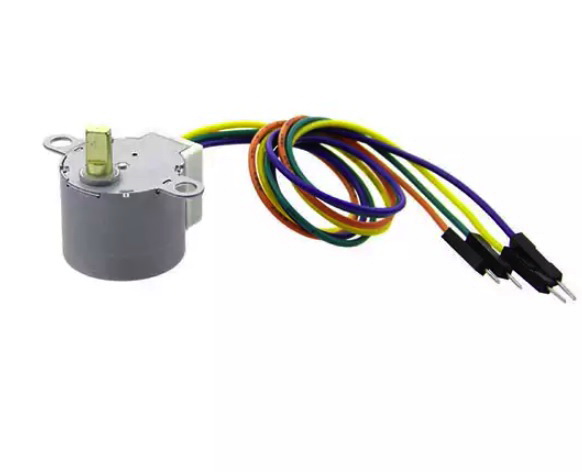

Motor pas cu pas, bipolar, pas 0.176 grade, 5VDC, compatibil Arduino, 108990003, SEEED

Type Permanent Magnet Gear Motor

Coil Type Bipolar

Voltage - Rated 5VDC

Steps per Revolution 2048

Step Angle 0.176°

Accuracy -

Torque - Holding (oz-in / mNm) 5.5 / 39.2

Size / Dimension Round - 0.945" Dia (24.00mm)

Diameter - Shaft 0.118" (3.00mm)

Length - Shaft and Bearing 0.394" (10.00mm)

Mounting Hole Spacing 1.220" (31.00mm)

Termination Style Wire Leads with Connector

Operating Temperature -

Coil Resistance 25 Ohms

Features Flatted Shaft

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala.
