Modul WiFi, FTP, HTTP, IEEE 802.11b/g/n, IPv4, TCP, UDP, ESP-WROOM-02U, ESPRESSIF

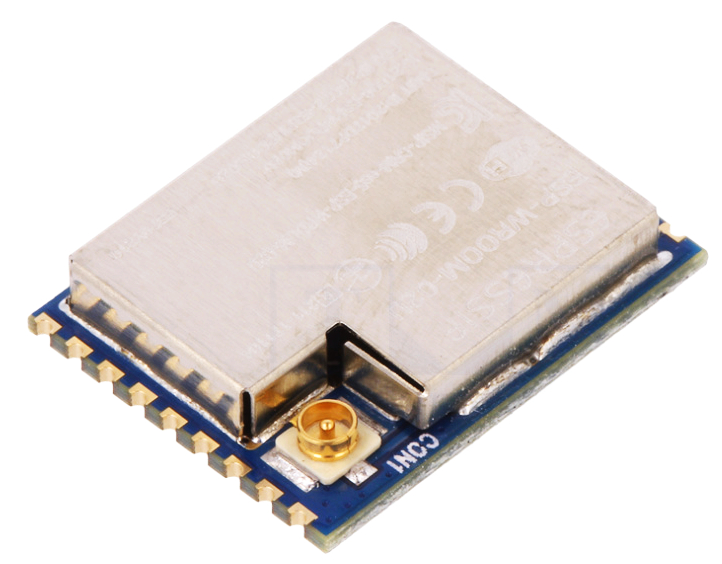

Denumire Produs: ESP-WROOM-02U, ESPRESSIF

COD: 87927

Preț orientativ: 42,56 RON

Descriere
Data Sheet
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

Modul WiFi, FTP, HTTP, IEEE 802.11b/g/n, IPv4, TCP, UDP, ESP-WROOM-02U, ESPRESSIF

Manufacturer	ESPRESSIF
Type of communications module	WiFi
Supply voltage	2.7...3.6V DC
Communictions protocol	FTP, HTTP, IEEE 802.11b/g/n, IPv4, TCP, UDP
Transmitter output power, dBm	20dBm
Receiver sensitivity	b: -91 dBm, g: -75 dBm, n: -72 dBm
Mounting	SMD
Dimensions	18 x 14.3 x 3.2mm
Ciphering	AES, WPA, WPA2, WPS
TX/RX supply current	170/56mA
Kind of connector	U.FL
Band	2,412G...2,484GHz
Flash memory capacity	2MB

Interface:

GPIO
I2C
I2S
PWM
SDIO
SPI
UART

Modul WiFi, FTP, HTTP, IEEE 802.11b/g/n, IPv4, TCP, UDP, ESP-WROOM-02U, ESPRESSIF
