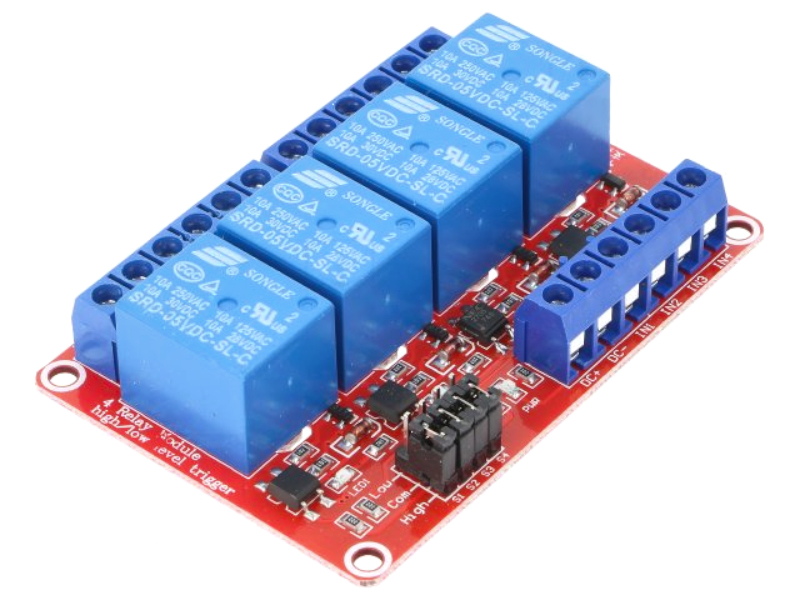

Modul releu; 5...12VDC, 4 canale, max 250VAC/30VDC, 10A, OKY3013-3

Denumire Produs: OKY3013-3

COD: 83953


Preț: 59,00 RON

(Pretul include TVA)
Stoc Limitat
Producător : OKYSTAR
Tip modul : releu
Informaţii : Produsul nu este un dispozitiv de lucru ci doar un component
Număr canale : 4
Tensiune alimentare : 5...12V DC
Tensiune comutată : max 30V DC, max 250V AC
Curent max.contacte : 10A

1, the module uses genuine quality relay, normally open interfaces Maximum load: AC 250V / 10A, DC 30V / 10A;
2, SMD optocoupler isolation, strong driving ability, stable performance; trigger current 5mA;
3, the module voltage 5V, 12V, 24V to choose from;
4, each channel module can be set high or low triggered by jumper;
5, fault-tolerant design, even if the control line is broken, the relay will not operate;
6, power indicator , 4 relay state indicator
7, interface design user-friendly, all interfaces are available through the wiring terminal direct connection leads, very convenient
8, module size: 73mm * 50mm * 18.5mm (L * W * H)
9, has 4 mounting bolts holes, hole 3.1mm, spacing 67mm * 44.5mm

4-Channel Relay Module High Low Level Trigger Optocoupler Sensor With Insulation
Product Description
1. Maximum load:AC 250V/10A, DC30V/10A
2. SMD optocoupler isolation, strong driving ability, stable performance; trigger current 5mA
3. the module voltage 12V
4. each channel module can be set high or low triggered by jumper
5. fault-tolerant design, even if the control line is broken, the relay will not operate
6. power indicator , 4 relay state indicator
7. interface design user-friendly, all interfaces are available through the wiring terminal direct connection leads, very convenient
