Robotică Modul evaluare, senzor de temperatură, termistor, K termocuplu, 111020002, SEEED
Robotică Modul evaluare, senzor de temperatură, termistor, K termocuplu, 111020002, SEEED
Thermocouples are very sensitive, requiring a good amplifier with a cold ‐ compensation
reference. The Grove ‐ Temperature Sensor USES a K type thermocouple
Temperature detection, with a Thermistor to detect The ambient Temperature as Temperature
compensation. The detectable range of this Sensor is ‐50‐600C , and The accuracy is (2.0% + 2C)
Specifications Voltage：3.3 ~ 5V
Max power rating at 25C ：300mW
Operating temperature range：‐40 ~ +125C
The temperature measurement range is (‐50 ~ +600C)
Amplifier output voltage range (0 ~ 3.3 V) mv
Cold junction compensation (environment temperature measurement)
Thermocouple temperature measurement accuracy of + / ‐ 2.0% (+ 2 C)

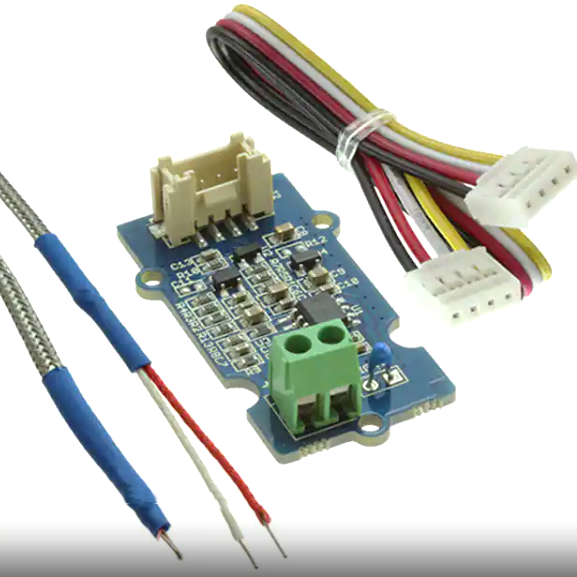

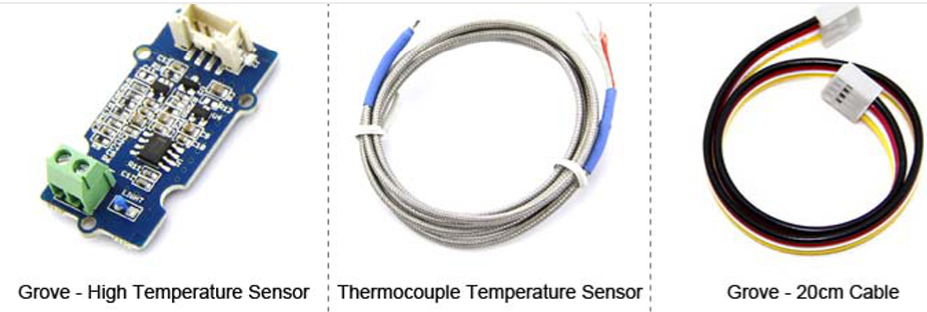

Package Include：
Grove ‐ High Temperature Sensor x1
Thermocouple Temperature Sensor x1
24AWG Grove Cable ‐ 4P‐4P‐2.0‐200mm x1
